NFE31PT222Z1E9K - Murata Electronics

Description: NFE31PT Series EMI Suppression Filter 2200pF ±50% 6A 25V

Download NFE31PT222Z1E9K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

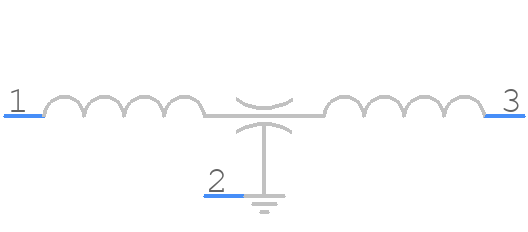

Symbol
NFE31PT222Z1E9K - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
NFE31PT222Z1E9K - Murata Electronics PCB footprint - Other - Other - NFE31 L=3.2 W=3.2 T=3.2-5
click to zoom
3D Models
NFE31PT222Z1E9K - Murata Electronics - 3D model - Other - NFE31 L=3.2 W=3.2 T=3.2-5
click to zoom

NFE31PT222Z1E9K Details

  • Manufacturer Part Number:

    NFE31PT222Z1E9K

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    EIA STD PACKAGE SIZE 1206, 3 PIN

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Additional Feature:

    T-TYPE CIRCUIT; BUILT-IN FERRITE BEAD

  • Capacitance:

    2200 µF

  • Filter Type:

    DATA LINE FILTER

  • Height:

    1.6 mm

  • Insulation Resistance-Min:

    1000 MΩ

  • JESD-609 Code:

    e2

  • Length:

    3.2 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TAPE AND REEL

  • Rated Current:

    6 A

  • Rated Voltage:

    25 V

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Width:

    1.6 mm

NFE31PT222Z1E9K Frequently Asked Questions (FAQs)

  • Murata provides a recommended PCB land pattern in their datasheet, but it's essential to note that the actual land pattern may vary depending on the specific PCB design and manufacturing process. It's recommended to consult with a PCB design expert or Murata's application notes for more information.
  • The NFE31PT222Z1E9K is designed to operate at high frequencies and has a shielded construction to minimize electromagnetic interference (EMI). However, it's still important to follow proper PCB design and layout practices to minimize noise and EMI. Additionally, Murata recommends using the inductor in conjunction with other EMI mitigation techniques, such as shielding and filtering.
  • The NFE31PT222Z1E9K has a maximum operating temperature range of -40°C to +125°C, as specified in the datasheet. However, it's essential to note that the inductor's performance and reliability may degrade at extreme temperatures. It's recommended to consult with Murata's application notes and thermal management guidelines for more information.
  • The NFE31PT222Z1E9K has a maximum current rating of 2.2A, as specified in the datasheet. While it can handle moderate current levels, it's not suitable for high-current applications. If you need an inductor for high-current applications, consider using a different part number or consulting with Murata's application engineers for guidance.
  • The NFE31PT222Z1E9K has a low DC resistance (DCR) and high efficiency, which minimizes power losses and heat generation. However, the overall system power efficiency depends on various factors, including the inductor's operating frequency, current levels, and PCB design. It's recommended to consult with Murata's application notes and perform thorough system-level simulations to optimize power efficiency.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NFE31PT222Z1E9K Overview

Use the download button to access the NFE31PT222Z1E9K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NFE31, or try a keyword search, such as Data Line Filters

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
