NFL18ZT307H1A3D - Murata Electronics

Description: NFL18ZT Series EMI Suppression Filter Cutoff 300MHz 100mA 10V

Download NFL18ZT307H1A3D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

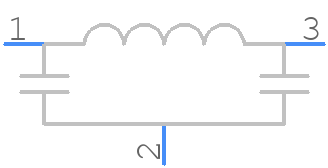

Symbol
NFL18ZT307H1A3D - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
NFL18ZT307H1A3D - Murata Electronics PCB footprint - Other - Other - NFL18S L=1.6 W=0.8 T=0.6
click to zoom
3D Models
NFL18ZT307H1A3D - Murata Electronics - 3D model - Other - NFL18S L=1.6 W=0.8 T=0.6
click to zoom

NFL18ZT307H1A3D Details

  • Manufacturer Part Number:

    NFL18ZT307H1A3D

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    EIA STD PACKAGE SIZE 0603, SMD, 3 PIN

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    43 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    2

  • Additional Feature:

    T-TYPE CIRCUIT

  • Capacitance:

    16 µF

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.6 mm

  • Inductance:

    0.074 µH

  • Insertion Loss-Max:

    6 dB

  • Insulation Resistance-Min:

    1000 MΩ

  • Length:

    1.6 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    TR, PAPER, 7 INCH

  • Rated Current:

    0.1 A

  • Rated Voltage:

    10 V

  • Screening Level:

    AEC-Q200

  • Width:

    0.8 mm

NFL18ZT307H1A3D Frequently Asked Questions (FAQs)

  • The recommended land pattern for the NFL18ZT307H1A3D capacitor is a rectangular pad with a size of 3.2mm x 1.6mm, with a solder mask clearance of 0.2mm.
  • To handle the capacitor's sensitivity to moisture, it is recommended to store the components in a dry environment, and to follow the recommended reflow soldering profile to minimize moisture absorption during the assembly process.
  • The maximum voltage derating for the NFL18ZT307H1A3D capacitor is 80% of the rated voltage, which is 16V for this specific component.
  • Yes, the NFL18ZT307H1A3D capacitor is suitable for high-frequency applications up to 1 GHz, but it's recommended to consult the impedance characteristics graph in the datasheet to ensure the capacitor's performance meets the application's requirements.
  • To ensure the capacitor's reliability in a high-temperature environment, it's recommended to follow the recommended operating temperature range of -55°C to 125°C, and to consider the capacitor's temperature coefficient of capacitance when designing the application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NFL18ZT307H1A3D Overview

Use the download button to access the NFL18ZT307H1A3D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NFL18, or try a keyword search, such as Data Line Filters

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
