NFL18ZT506H1A3D - Murata Electronics

Description: NFL18ZT Series EMI Suppression Filter Cutoff 50MHz 75mA 10V

Download NFL18ZT506H1A3D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

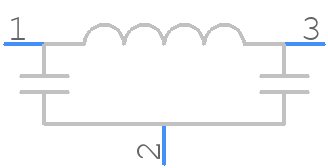

NFL18ZT506H1A3D - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
NFL18ZT506H1A3D - Murata Electronics PCB footprint - Other - Other - NFL18S L=1.6 W=0.8 T=0.6
click to zoom
3D Models
NFL18ZT506H1A3D - Murata Electronics - 3D model - Other - NFL18S L=1.6 W=0.8 T=0.6
click to zoom

NFL18ZT506H1A3D Details

  • Manufacturer Part Number:

    NFL18ZT506H1A3D

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    EIA STD PACKAGE SIZE 0603, SMD, 2 PIN

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    43 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    2

  • Capacitance:

    110 µF

  • Filter Type:

    DATA LINE FILTER
