NFL18ZT507H1A3D - Murata Electronics

Description: NFL18ZT Series EMI Suppression Filter Cutoff 500MHz 100mA 10V

Download NFL18ZT507H1A3D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

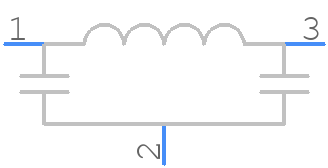

NFL18ZT507H1A3D - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
NFL18ZT507H1A3D - Murata Electronics PCB footprint - Other - Other - NFL18S L=1.6 W=0.8 T=0.6
click to zoom
3D Models
NFL18ZT507H1A3D - Murata Electronics - 3D model - Other - NFL18S L=1.6 W=0.8 T=0.6
click to zoom

NFL18ZT507H1A3D Details

  • Manufacturer Part Number:

    NFL18ZT507H1A3D

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    EIA-0603, SMD, 2 PIN

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    43 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    2

  • Capacitance:

    10 µF

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.6 mm

  • Inductance:

    0.042 µH

  • Insertion Loss-Max:

    6 dB

  • Insulation Resistance-Min:

    1000 MΩ

  • Length:

    1.6 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    TR, PAPER, 7 INCH

  • Rated Current:

    0.1 A

  • Rated Voltage:

    10 V

  • Screening Level:

    AEC-Q200

  • Width:

    0.8 mm

NFL18ZT507H1A3D Frequently Asked Questions (FAQs)

  • The recommended land pattern for the NFL18ZT507H1A3D can be found in the Murata Land Pattern Recommendation document, which provides guidelines for PCB layout and footprint design.
  • The ESR of the NFL18ZT507H1A3D is specified in the datasheet. To handle ESR in your design, consider using impedance analysis tools or simulation software to ensure that the component's ESR does not affect the overall circuit performance.
  • The maximum operating temperature range for the NFL18ZT507H1A3D is -40°C to +125°C, as specified in the datasheet. However, it's essential to consider the component's derating characteristics and thermal management in your design.
  • To ensure the reliability of the NFL18ZT507H1A3D in high-vibration or high-shock environments, consider using additional mechanical support or potting materials, and follow Murata's guidelines for component mounting and PCB design.
  • The recommended soldering conditions for the NFL18ZT507H1A3D can be found in the Murata Soldering Guidelines document, which provides information on temperature profiles, soldering times, and other critical parameters.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NFL18ZT507H1A3D Overview

Use the download button to access the NFL18ZT507H1A3D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NFL18, or try a keyword search, such as Data Line Filters

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
