NFM-15-12 - Mean Well

Description: Mean Well, 15W Embedded Switch Mode Power Supply SMPS, 12V dc, Open Frame, Medical Approved

Download NFM-15-12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NFM-15-12 - Mean Well - PCB symbol
click to zoom
PCB Footprints

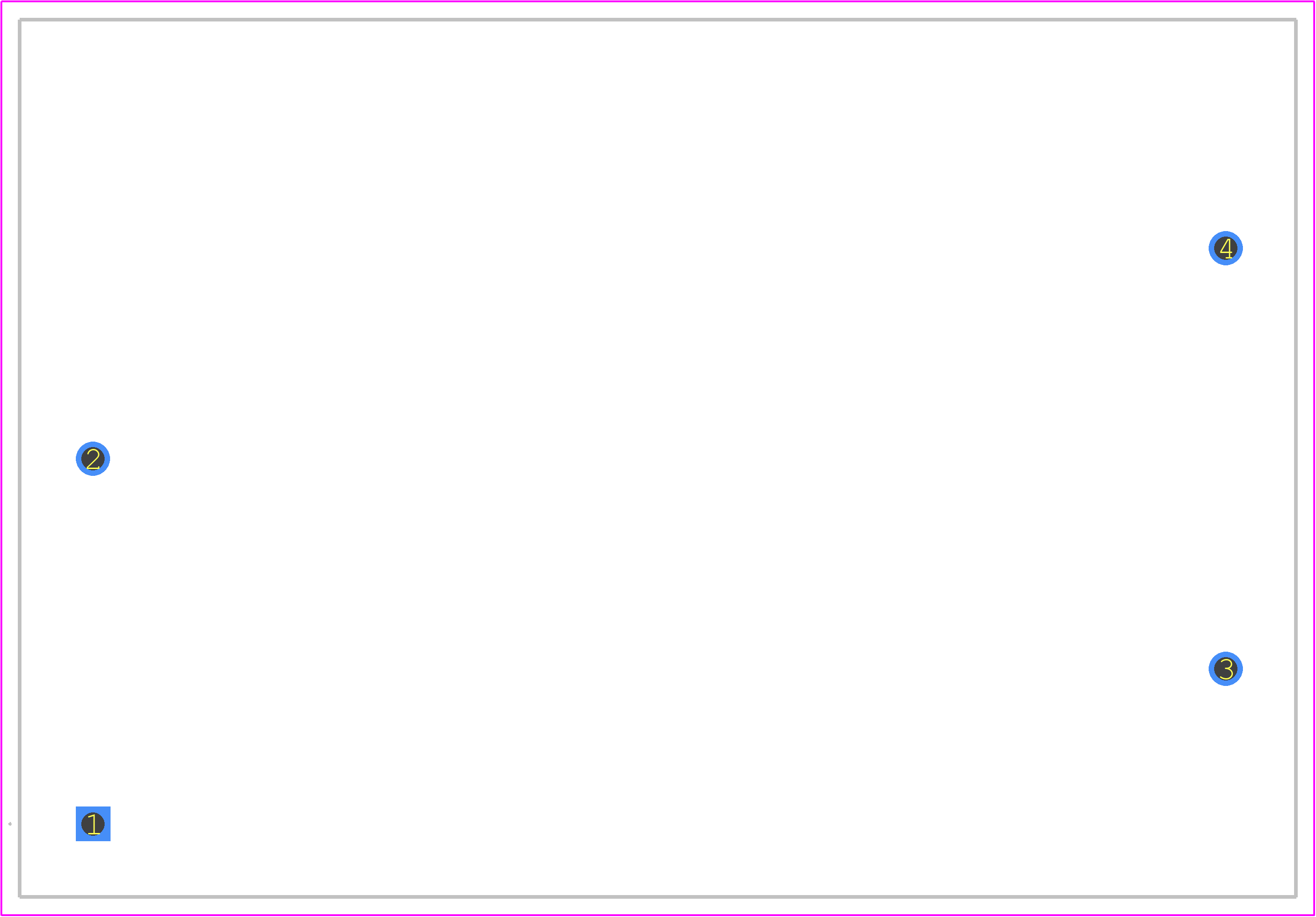

NFM-15-12 - Mean Well PCB footprint - Other - Other - NFM-15-12-2
click to zoom
3D Models
NFM-15-12 - Mean Well - 3D model - Other - NFM-15-12-2
click to zoom

NFM-15-12 Details

  • Manufacturer Part Number:

    NFM-15-12

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mean Well

  • YTEOL:

    0

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    UL, TUV

  • Efficiency (Main Output):

    78%

  • Input Voltage-Max:

    264 V

  • Input Voltage-Min:

    85 V

  • Input Voltage-Nom:

    115 V

  • Length:

    69.85 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Current-Max:

    1.25 A

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    10.8 V

  • Output Voltage-Nom:

    12 V

  • Protections:

    OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL

  • Total Power Output-Max:

    15 W

  • Warm-up Time:

    1 s

  • Width:

    48 mm

NFM-15-12 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NFM-15-12 is -20°C to 60°C, with a derating of 2.5% per °C above 40°C.
  • Yes, the NFM-15-12 is designed to operate in humid environments, with a relative humidity of up to 95% non-condensing.
  • The NFM-15-12 requires a minimum load of 10% of the maximum rated output current to maintain stable operation.
  • No, the NFM-15-12 is not designed for parallel operation. Connecting multiple units in parallel may cause instability and reduce reliability.
  • The MTBF rating for the NFM-15-12 is approximately 550,000 hours, calculated according to MIL-HDBK-217F.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NFM-15-12 Overview

Use the download button to access the NFM-15-12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NFM-1, or try a keyword search, such as Power Supply Modules

About Mean Well

MEAN WELL is a manufacturer of standard power supply products used in communications, industrial, medical and automation industries. Their products include power supplies, converters, inverters, and battery chargers. MEAN WELL is headquartered in Taipei, Taiwan.
