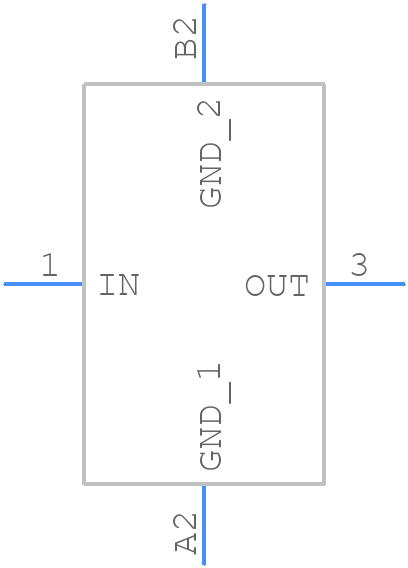

NFM21PC105B1C3D - Murata Electronics

NFM21PC105B1C3D Frequently Asked Questions (FAQs)

• What is the recommended land pattern for this capacitor?
  The recommended land pattern for the NFM21PC105B1C3D capacitor is a rectangular pad with a size of 2.5mm x 1.6mm, with a solder mask clearance of 0.2mm.
• How do I handle the capacitor during assembly to prevent damage?
  Handle the capacitor by the body, avoiding touching the terminals to prevent electrostatic discharge (ESD) damage. Use an anti-static wrist strap or mat during assembly.
• What is the maximum voltage derating for this capacitor?
  The maximum voltage derating for the NFM21PC105B1C3D capacitor is 80% of the rated voltage, which is 105V. Therefore, the maximum voltage derating is 84V.
• Can I use this capacitor in a high-temperature environment?
  The NFM21PC105B1C3D capacitor is rated for operation up to 125°C. However, the capacitance and ESR may degrade at high temperatures. Consult the datasheet for temperature derating curves.
• How do I store the capacitor to maintain its shelf life?
  Store the capacitor in a cool, dry place, away from direct sunlight and moisture. Avoid storing the capacitor in a humid environment or in close proximity to chemicals or cleaning solvents.
