Part Image

NFM21PC475B1A3D - Murata Electronics

Description: EMI Filter 6A 10Vdc Flat Style SMD Murata NFM21PC Series, EMI Filter, 10 V dc, 6A 0805/2012 SMD, Flat Contact Termination, 2 x 1.25 x 0.85mm

Download NFM21PC475B1A3D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

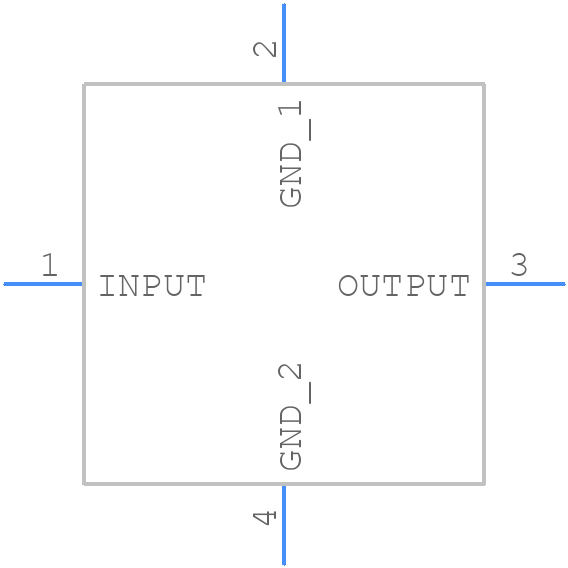

Symbol
NFM21PC475B1A3D - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
NFM21PC475B1A3D - Murata Electronics PCB footprint - Other - Other - L=2 W=1.25 T=0.85
click to zoom
3D Models
NFM21PC475B1A3D - Murata Electronics - 3D model - Other - L=2 W=1.25 T=0.85
click to zoom

NFM21PC475B1A3D Details

  • Manufacturer Part Number:

    NFM21PC475B1A3D

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    EIA STD PACKAGE SIZE 0805, 3 PIN

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    C-TYPE CIRCUIT

  • Capacitance:

    4700000 µF

  • DC Resistance-Max:

    0.005 Ω

  • Filter Type:

    FEED THROUGH CAPACITOR

  • Height:

    0.85 mm

  • Insulation Resistance-Min:

    100 MΩ

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, PAPER, 7 INCH

  • Rated Current:

    6 A

  • Rated Voltage:

    10 V

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Width:

    1.25 mm

NFM21PC475B1A3D Frequently Asked Questions (FAQs)

  • The recommended land pattern for the NFM21PC475B1A3D capacitor is a rectangular pad with a size of 3.5mm x 2.5mm, with a solder mask clearance of 0.2mm.
  • To prevent damage, handle the capacitor by the body, avoid touching the terminals, and use an anti-static wrist strap or mat to prevent electrostatic discharge.
  • The maximum voltage derating for the NFM21PC475B1A3D capacitor is 80% of the rated voltage, which is 4.75V in this case.
  • The NFM21PC475B1A3D capacitor is rated for operation up to 125°C, but it's recommended to derate the voltage and current ratings according to the temperature derating curve provided in the datasheet.
  • Store the capacitor in a cool, dry place, away from direct sunlight and moisture, and avoid stacking or compressing the components.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NFM21PC475B1A3D Overview

Use the download button to access the NFM21PC475B1A3D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NFM21, or try a keyword search, such as Data Line Filters

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
