NHD-0116DZ-FL-YBW footprint, schematic symbol and 3D model by Newhaven Display

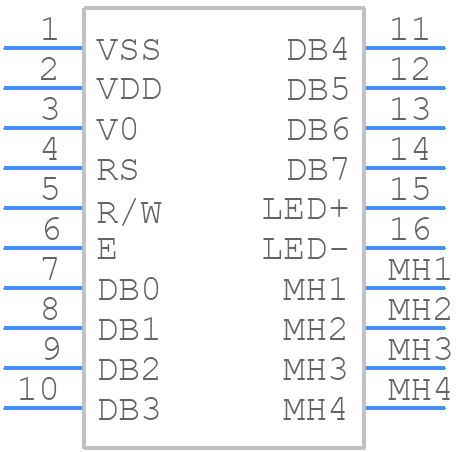

Symbol

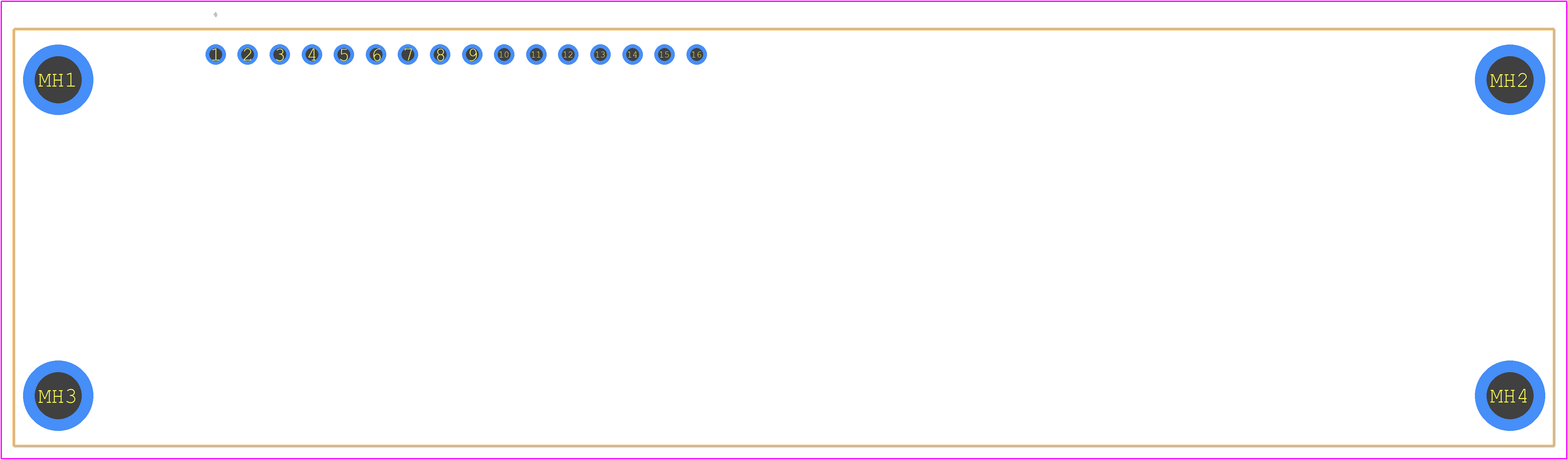

PCB Footprints

3D Models

NHD-0116DZ-FL-YBW Details

The recommended operating temperature range for the NHD-0116DZ-FL-YBW is -20°C to 70°C.
The display module requires a power-on reset (POR) sequence to initialize. This involves applying a voltage to the VCC pin, then waiting for the internal oscillator to stabilize before sending commands to the display.
The typical current consumption of the NHD-0116DZ-FL-YBW is around 10mA to 20mA, depending on the display mode and backlight usage.
The NHD-0116DZ-FL-YBW is not designed for high-humidity environments. It is recommended to use a conformal coating or other environmental protection measures to prevent moisture damage.
The typical lifespan of the backlight is around 50,000 hours to 100,000 hours, depending on the operating conditions and usage patterns.

Expert Contribution

System Verified

Community Approved

Use the download button to access the NHD-0116DZ-FL-YBW schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like NHD-0, or try a keyword search, such as LCD Displays
