NHD-0216K3Z-FSRGB-FBW - Newhaven Display

Description: Serial Liquid Crystal Display Module

Download NHD-0216K3Z-FSRGB-FBW Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this NHD-0216K3Z-FSRGB-FBW model

Email notifications will be applied after download.

Send part feedback

Symbol

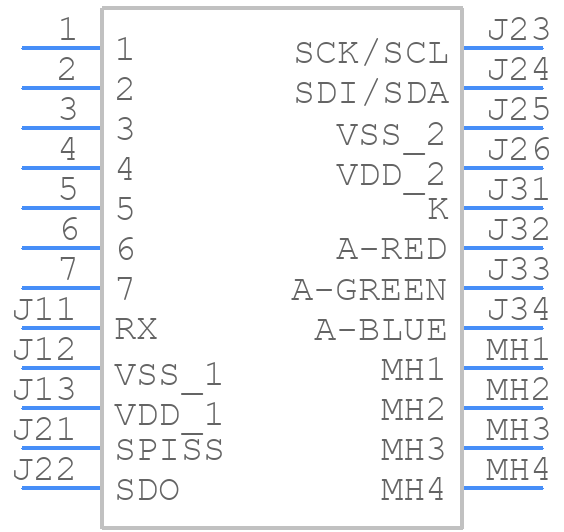

NHD-0216K3Z-FSRGB-FBW - Newhaven Display - PCB symbol

PCB Footprints

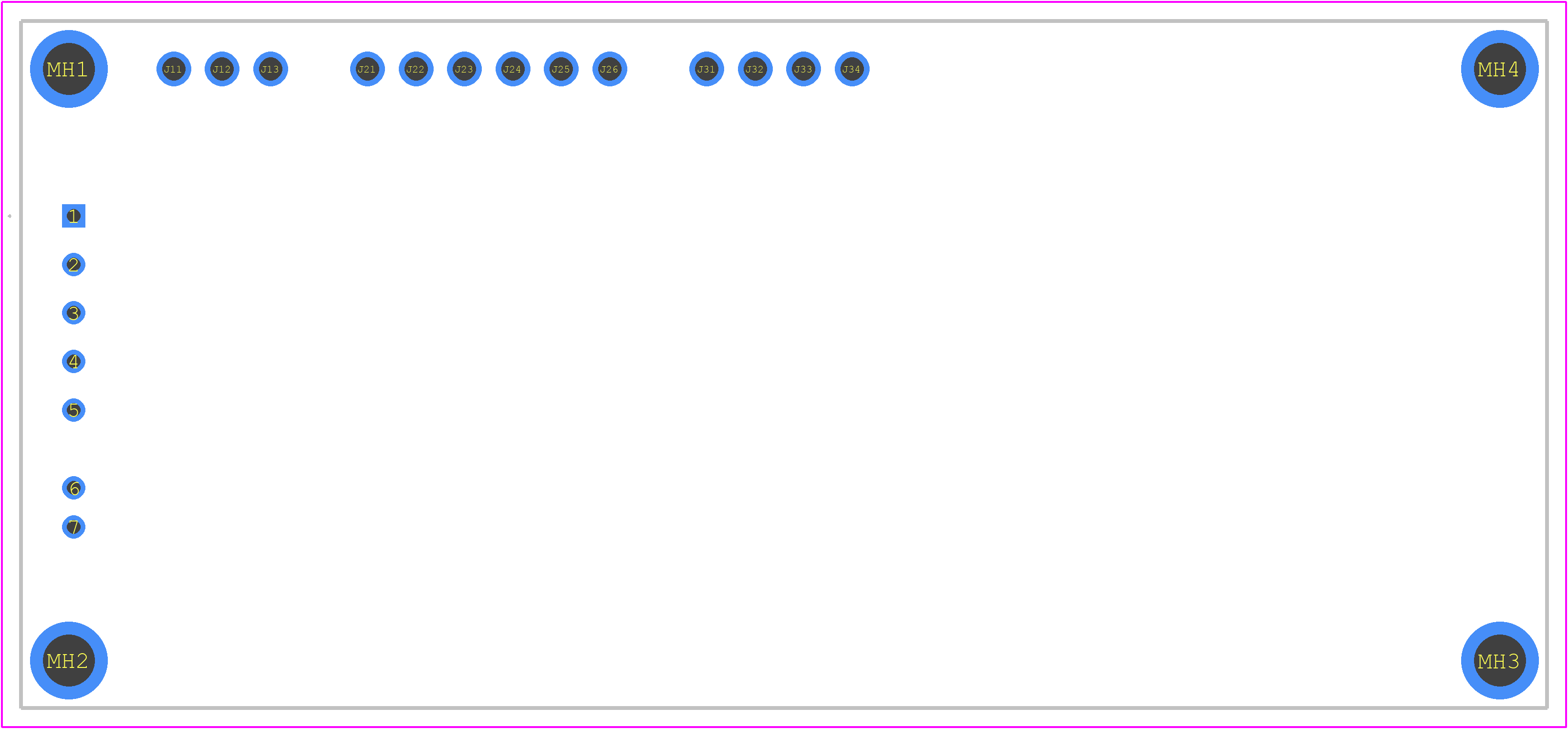

NHD-0216K3Z-FSRGB-FBW - Newhaven Display PCB footprint - Other - Other - NHD-0216K3Z-FSRGB-FBW-7

Datasheet Download Datasheet
Stock & Prices Price & Stock for NHD-0216K3Z-FSRGB-FBW
Part Number NHD-0216K3Z-FSRGB-FBW
Manufacturer Newhaven Display
Pin Count 24
Part Category Display
Package Category Other
Footprint Name Other - NHD-0216K3Z-FSRGB-FBW-7
Released Date Jan 4, 2022
Last Modified Date Mar 21, 2023 10:52 AM UTC
Pinout / Pin List Click Here (Member Only)

NHD-0216K3Z-FSRGB-FBW Details

Manufacturer Part Number:
NHD-0216K3Z-FSRGB-FBW
Rohs Code:
Yes
Part Life Cycle Code:
Contact Manufacturer
Country Of Origin:
Mainland China
Manufacturer:
Newhaven Display International
YTEOL:
2
