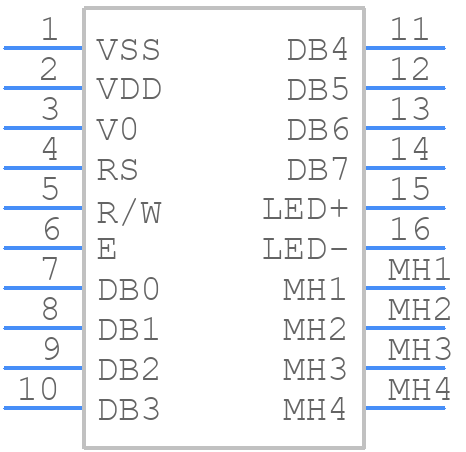

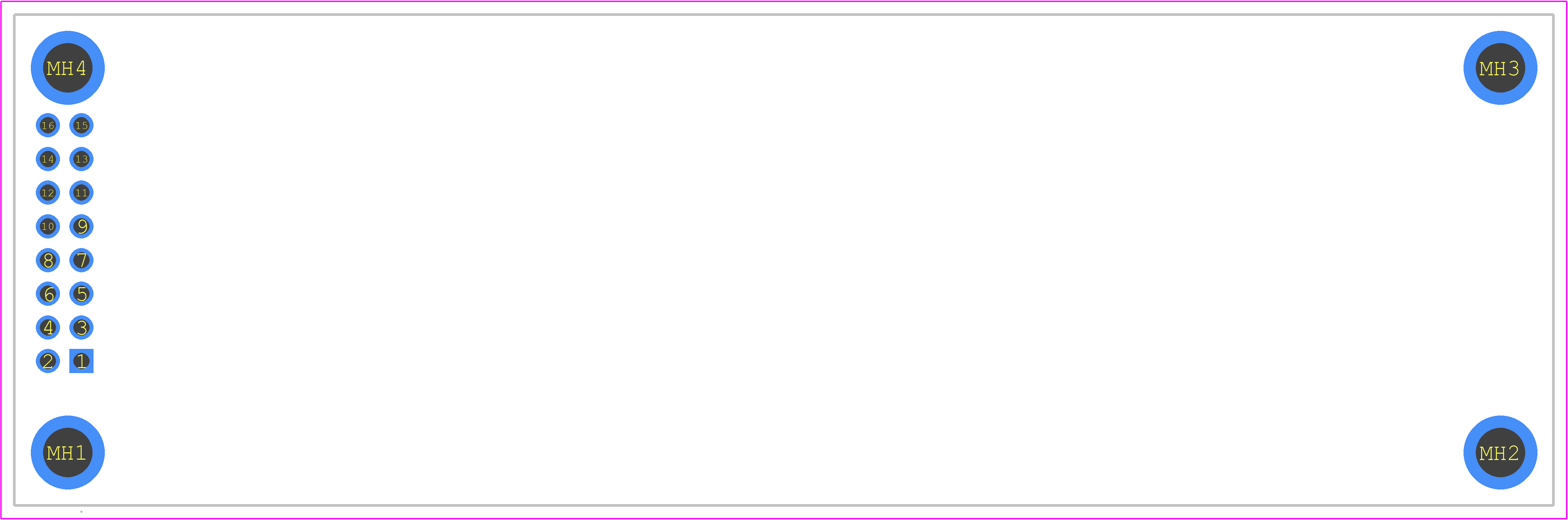

NHD-0220DZ-FSW-FBW - Newhaven Display

NHD-0220DZ-FSW-FBW Frequently Asked Questions (FAQs)

• What is the recommended operating temperature range for this display?
  The recommended operating temperature range for the NHD-0220DZ-FSW-FBW is -20°C to 70°C.
• How do I initialize the display module?
  The display module can be initialized by sending a series of commands to the module, including the Function Set command, the Display Control command, and the Clear Display command. Refer to the datasheet for the specific command sequence.
• What is the maximum current consumption of the display module?
  The maximum current consumption of the NHD-0220DZ-FSW-FBW is approximately 350mA, depending on the display mode and backlight usage.
• Can I use this display module in a humid environment?
  The NHD-0220DZ-FSW-FBW is designed to operate in a relative humidity range of 40% to 80%. However, it's recommended to take precautions to prevent moisture ingress and ensure proper sealing and encapsulation to maintain reliability.
• How do I adjust the backlight brightness?
  The backlight brightness can be adjusted by applying a PWM signal to the backlight pin. The frequency of the PWM signal should be between 100Hz to 1kHz, and the duty cycle can be adjusted to control the brightness.
