NHD-2.8-25664UCY2 footprint, schematic symbol and 3D model by Newhaven Display

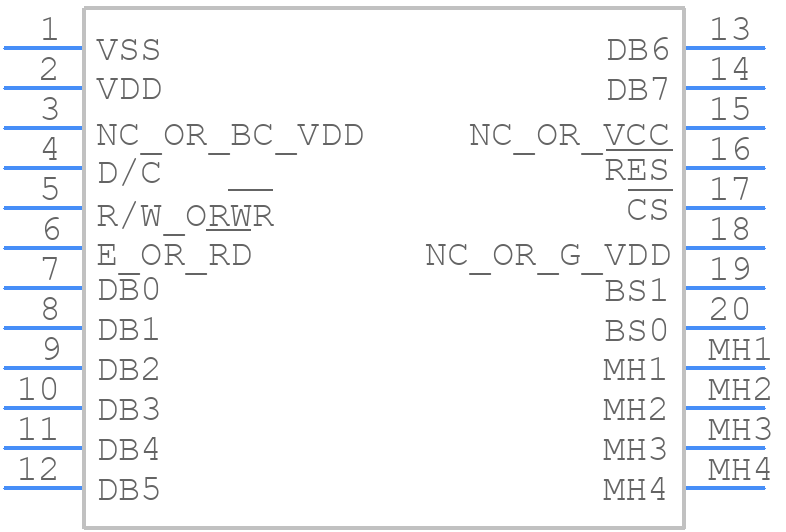

Symbol

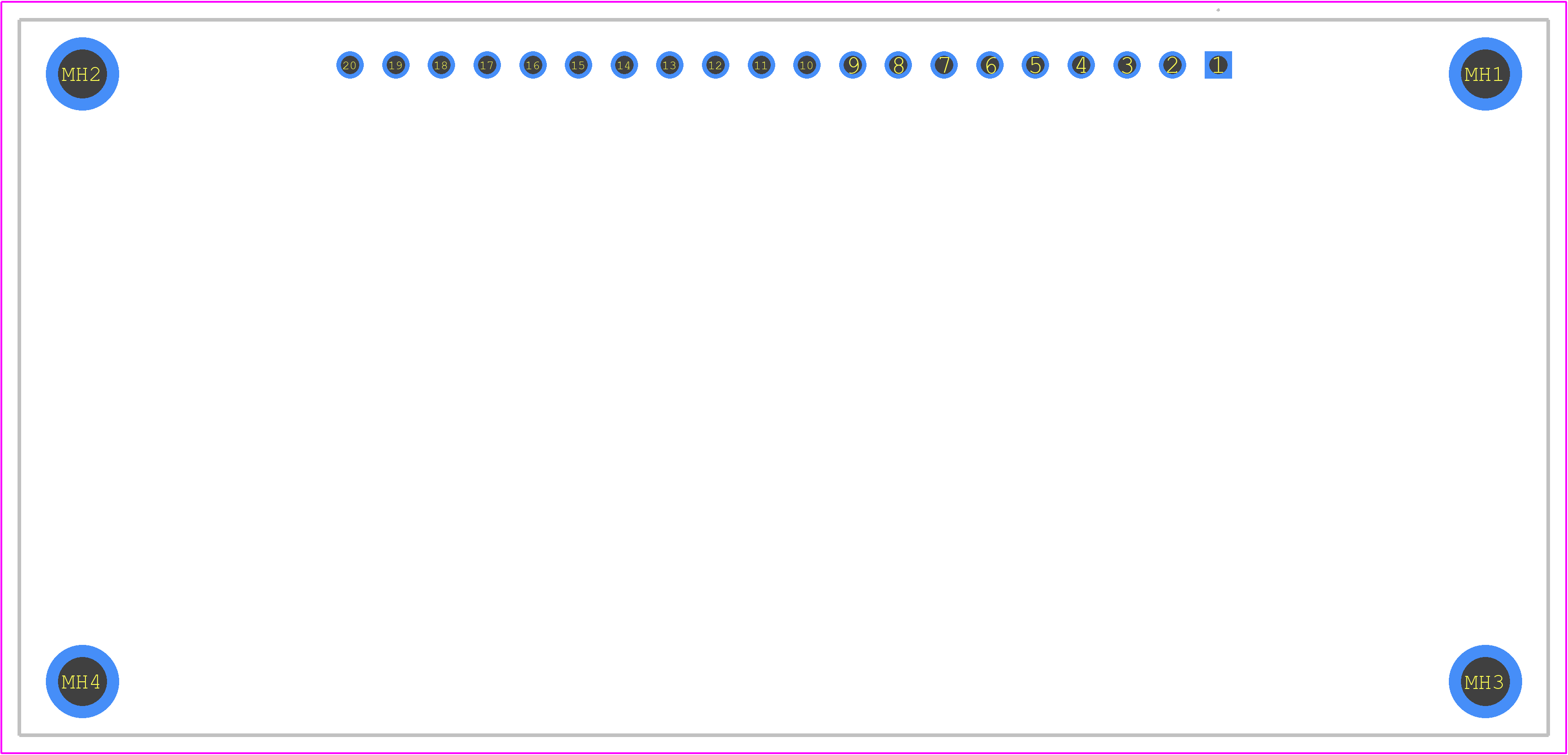

PCB Footprints

3D Models

NHD-2.8-25664UCY2 Details

The recommended power-on sequence is to apply VCC first, followed by VLOGIC, and then enable the display by setting the EN pin high.
After power-on, send a series of commands to the display to initialize it, including setting the display mode, clearing the display, and setting the cursor position.
The maximum frequency for the SPI interface is 20 MHz.
Yes, you can use a level shifter to convert the 3.3V logic to 5V, but ensure that the level shifter is compatible with the display's signal frequencies and voltage levels.
To enter sleep mode, set the EN pin low and wait for the display to enter sleep mode. To wake up the display, set the EN pin high and wait for the display to wake up.

Community Provided

System Verified

Community Approved

Use the download button to access the NHD-2.8-25664UCY2 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like NHD-2, or try a keyword search
