NHD-2.8-25664UMB3 - Newhaven Display

Description: Graphic LCD Display Module Blue OLED - Passive Matrix Parallel, 8-Bit, SPI 2.8" (71.12mm) 256 x 64

Download NHD-2.8-25664UMB3 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this NHD-2.8-25664UMB3 model

Email notifications will be applied after download.

Send part feedback

Symbol

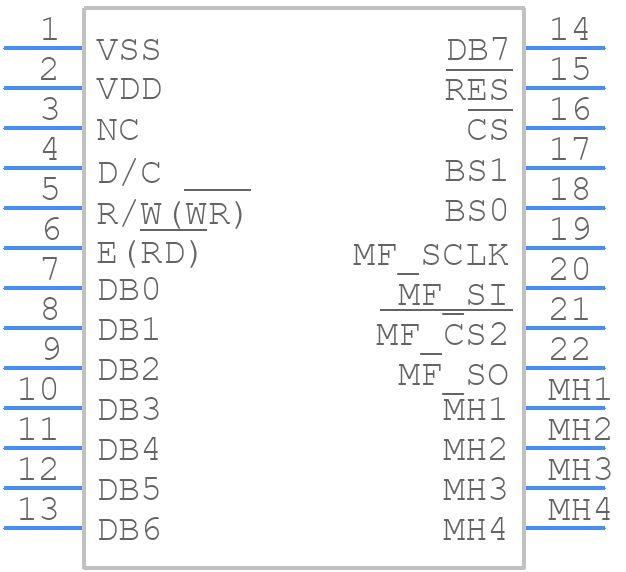

NHD-2.8-25664UMB3 - Newhaven Display - PCB symbol

PCB Footprints

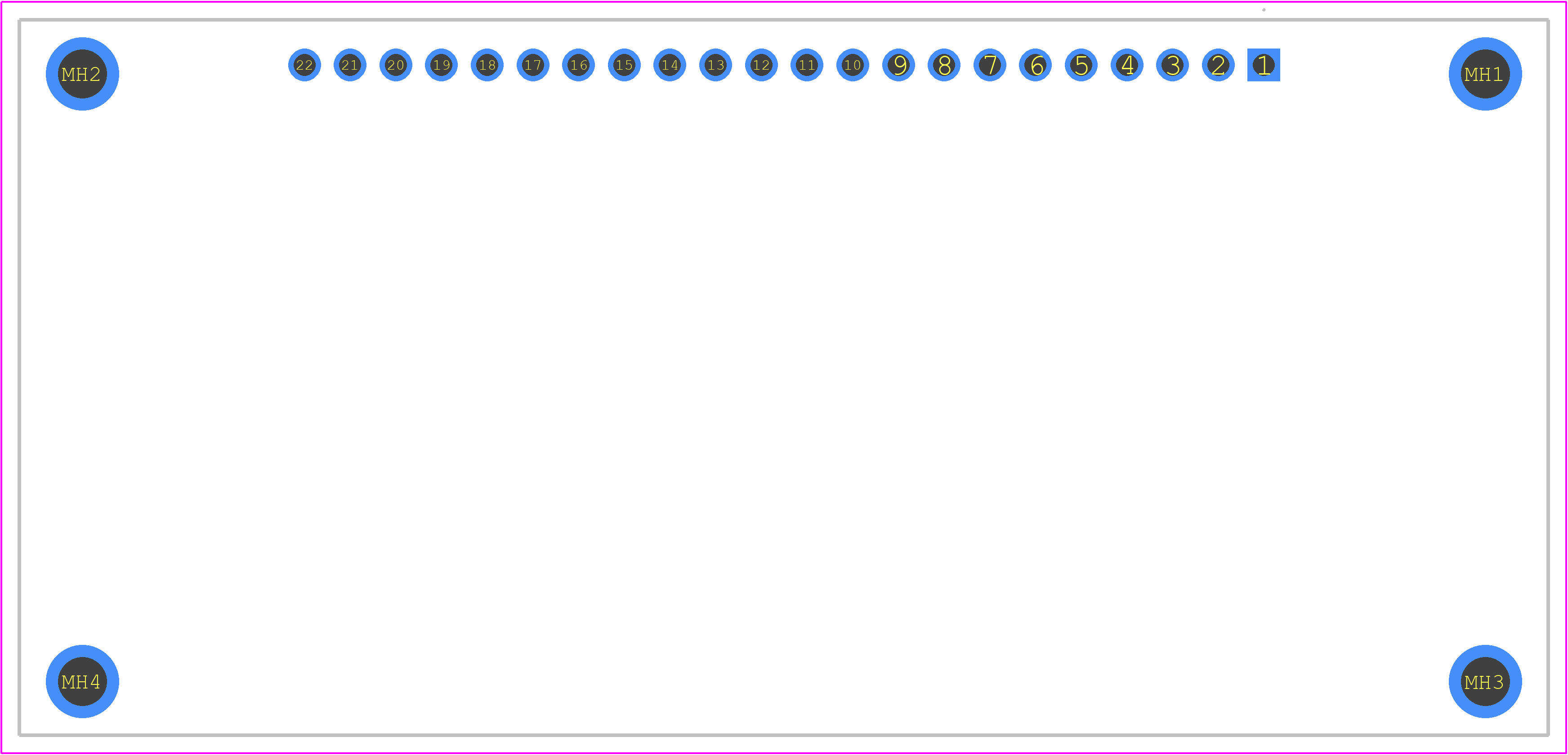

NHD-2.8-25664UMB3 - Newhaven Display PCB footprint - Other - Other - NHD-2.8-25664UMB3-2

3D Models

NHD-2.8-25664UMB3 - Newhaven Display - 3D model - Other - NHD-2.8-25664UMB3-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for NHD-2.8-25664UMB3
Part Number NHD-2.8-25664UMB3
Manufacturer Newhaven Display
Pin Count 26
Part Category Display
Package Category Other
Footprint Name Other - NHD-2.8-25664UMB3-2
Released Date Oct 30, 2023
Last Modified Date Oct 30, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

NHD-2.8-25664UMB3 Details

Manufacturer Part Number:
NHD-2.8-25664UMB3
Manufacturer:
Newhaven Display International

Trust Checks

Community Provided

System Verified

Community Approved

NHD-2.8-25664UMB3 Overview

Use the download button to access the NHD-2.8-25664UMB3 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like NHD-2, or try a keyword search, such as Displays
