NHD-C0220AZ-FSW-FTW footprint, schematic symbol and 3D model by Newhaven Display

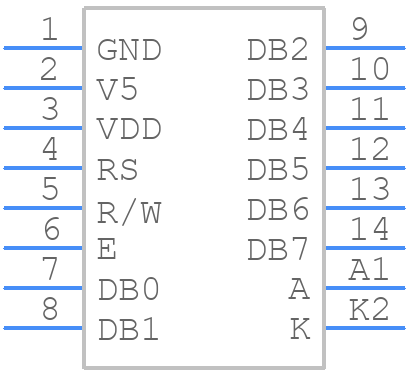

Symbol

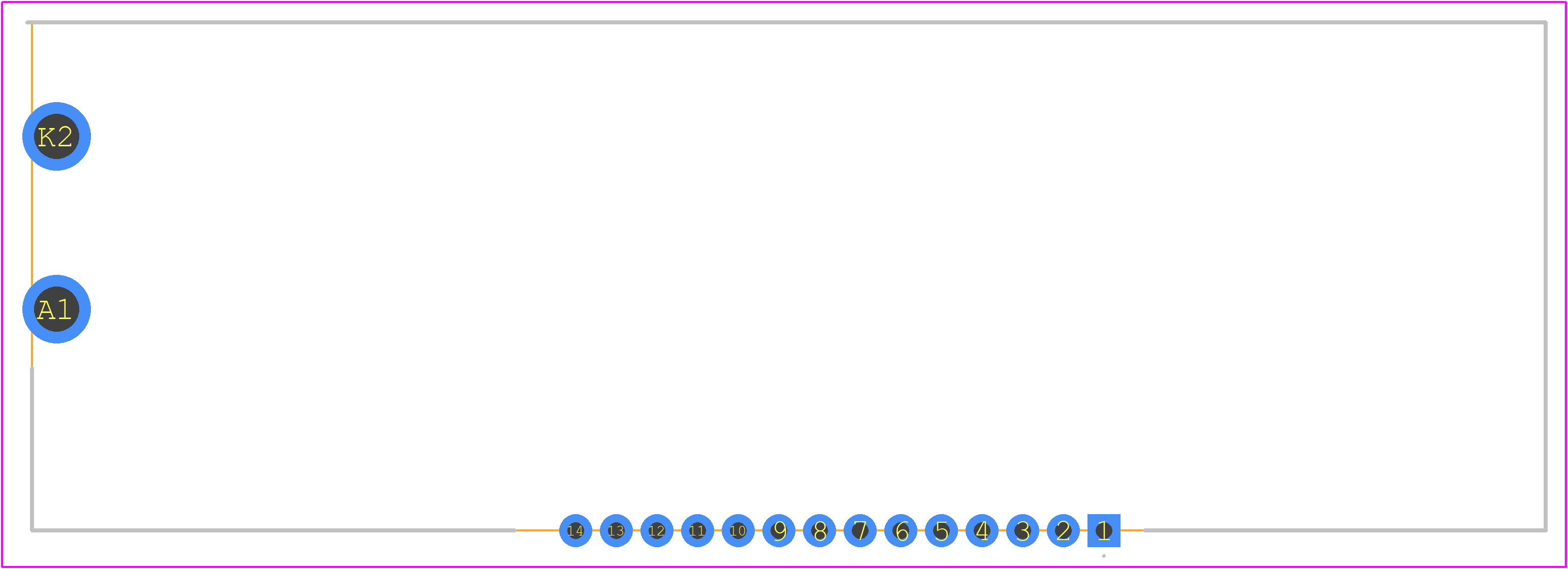

PCB Footprints

3D Models

NHD-C0220AZ-FSW-FTW Details

The recommended operating temperature range for the NHD-C0220AZ-FSW-FTW is -20°C to 70°C.
The display can be initialized by sending a series of commands to the controller, including the Function Set command, the Display Control command, and the Clear Display command. Refer to the controller's datasheet for the specific command sequence.
The maximum current consumption of the NHD-C0220AZ-FSW-FTW is approximately 20mA, depending on the display mode and backlight usage.
Yes, the NHD-C0220AZ-FSW-FTW can be used with a 5V microcontroller, but a level shifter or voltage divider may be required to convert the 5V logic levels to the display's 3.3V logic levels.
The display's contrast can be adjusted by sending a Contrast Set command to the controller. The contrast level can be set to one of 32 levels, ranging from 0 to 31.

Expert Contribution

System Verified

Community Approved

Use the download button to access the NHD-C0220AZ-FSW-FTW schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like NHD-C, or try a keyword search, such as LCD Displays
