NHD-C12864A1Z-FSR-FBW-HTT footprint, schematic symbol and 3D model by Newhaven Display

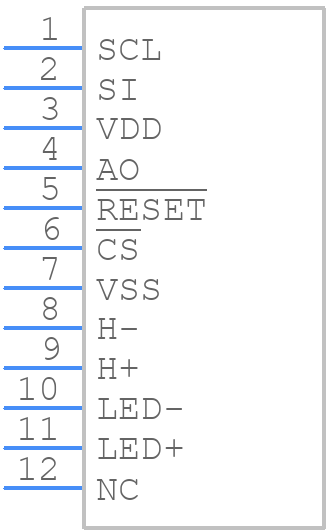

Symbol

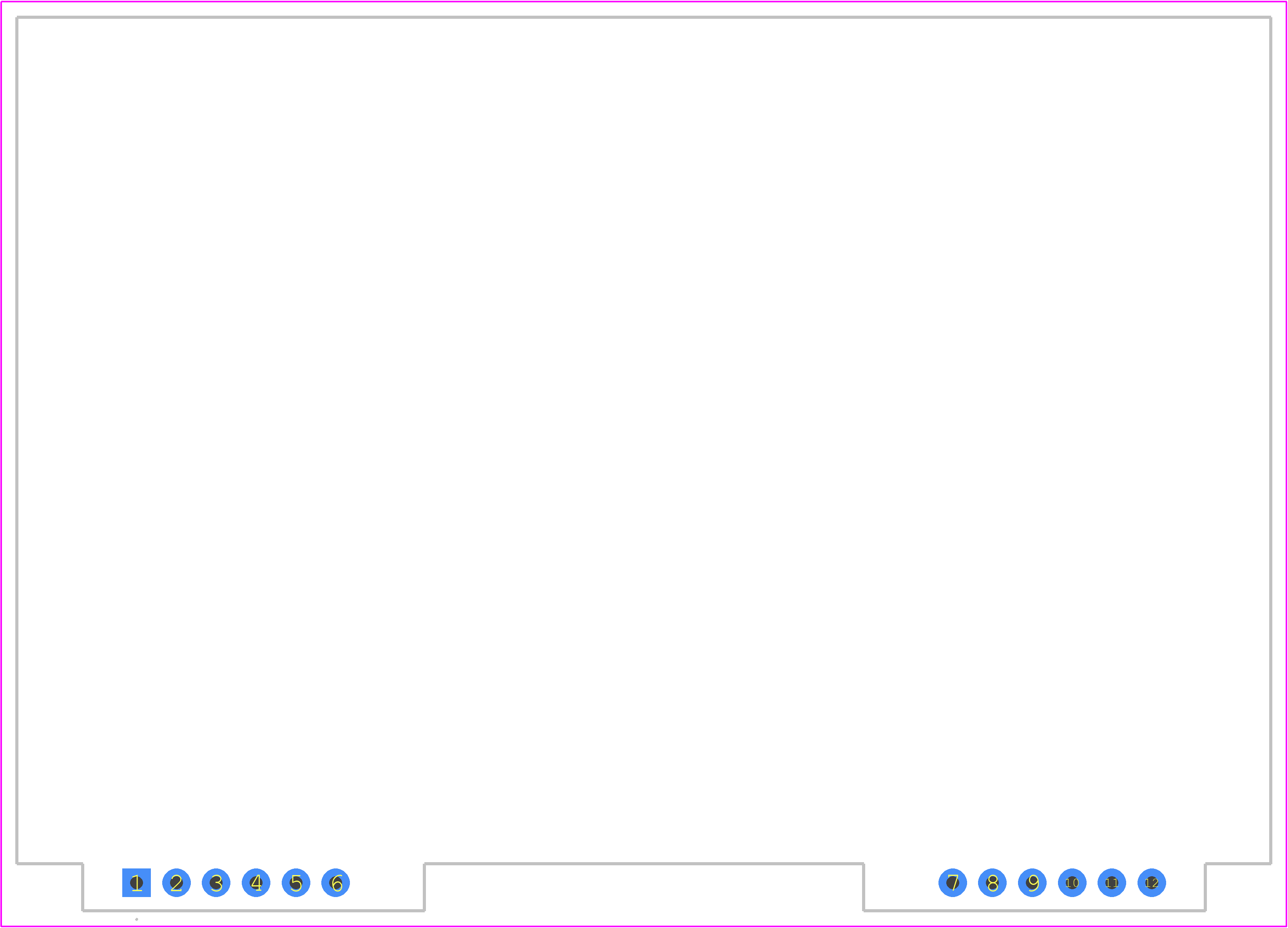

PCB Footprints

3D Models

NHD-C12864A1Z-FSR-FBW-HTT Details

The recommended operating temperature range for the NHD-C12864A1Z-FSR-FBW-HTT is -20°C to 70°C.
The display module requires a power-on reset (POR) sequence to initialize. This involves applying a voltage to the VCC pin, then waiting for a minimum of 10ms before sending commands to the display.
The maximum current consumption of the NHD-C12864A1Z-FSR-FBW-HTT is approximately 25mA, depending on the display mode and backlight usage.
No, the NHD-C12864A1Z-FSR-FBW-HTT is designed to operate with a 3.3V power supply. Using a 5V power supply may damage the display module.
The backlight brightness can be adjusted by applying a PWM signal to the BLK pin. The duty cycle of the PWM signal determines the brightness level.

Community Provided

System Verified

Community Approved

Use the download button to access the NHD-C12864A1Z-FSR-FBW-HTT schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like NHD-C, or try a keyword search, such as LCD Displays
