A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common mode filter to reduce EMI.
Use a thermal interface material (TIM) between the device and the heat sink. Ensure good airflow and avoid blocking the airflow around the device. Monitor the junction temperature (TJ) and adjust the system design accordingly.
Power up the device in the following sequence: VDDA, VDDD, VDDIO, and finally, the clock signal. Ensure a monotonic power-up sequence to prevent latch-up or damage to the device.
Use a power supply with a high current capability (>1A) and a low output impedance to handle the inrush current during startup. Consider using a soft-start circuit to limit the inrush current.
Use a logic analyzer or an oscilloscope to capture and analyze the signal waveforms. Check the device's status registers and error flags to identify the source of the issue. Consult the NXP support resources and documentation for troubleshooting guides.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NHS3100/A1Z Overview

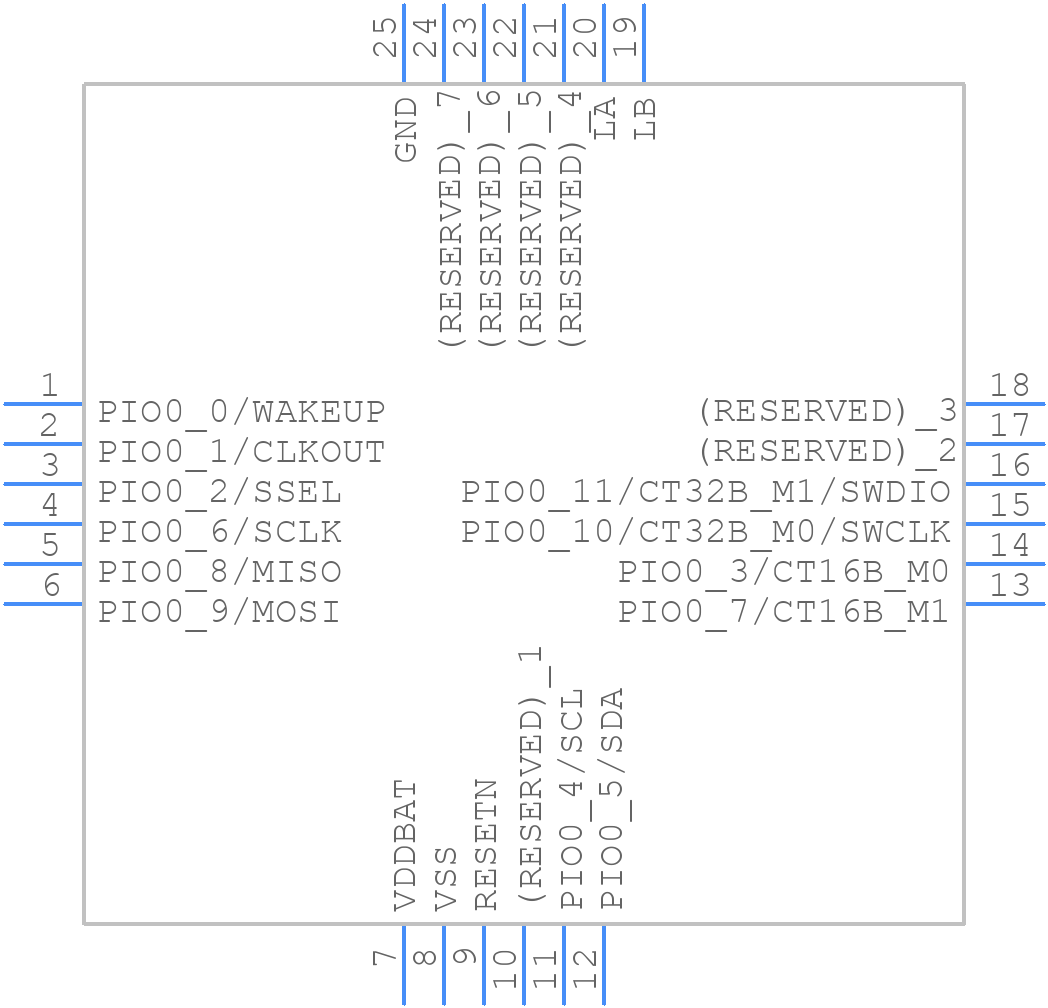

Use the download button to access the NHS3100/A1Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NHS31,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
About NXP
NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more.
NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
