NHS3100UK/A1Z footprint, schematic symbol and 3D model by NXP

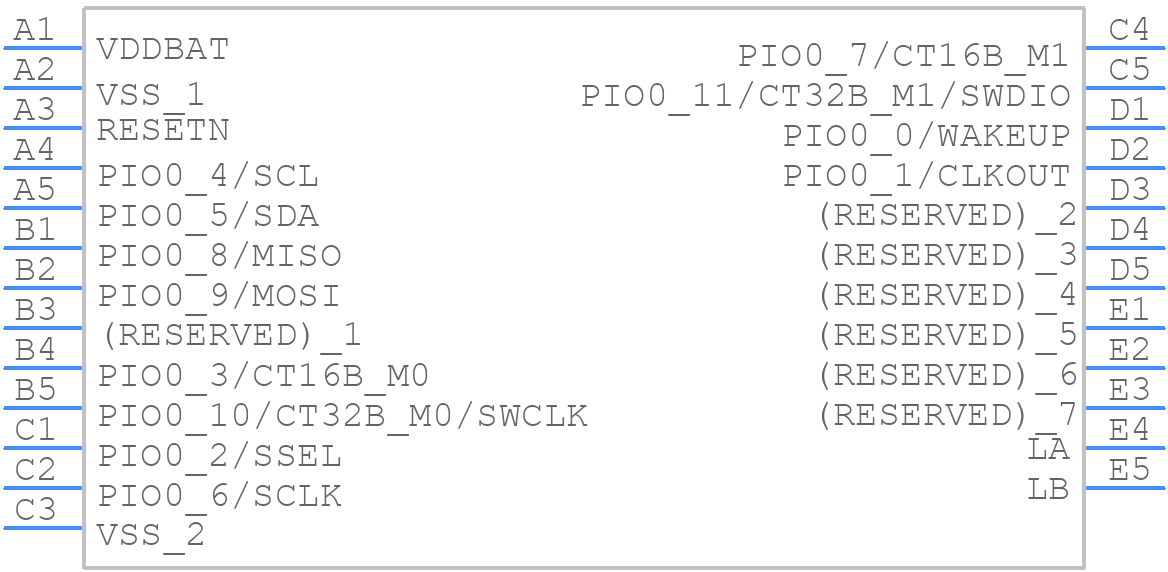

Symbol

click to zoom

PCB Footprints

NHS3100UK/A1Z - NXP PCB footprint - BGA - BGA - WLCSP25: wafer level chip-scale package, 25 balls; 2.51 x 2.51 x 0.5 mm

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for NHS3100UK/A1Z
Part Number NHS3100UK/A1Z
Manufacturer NXP
Pin Count 25
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - WLCSP25: wafer level chip-scale package, 25 balls; 2.51 x 2.51 x 0.5 mm
Released Date Aug 15, 2024
Last Modified Date Aug 15, 2024 4:29 AM UTC
Pinout / Pin List Click Here (Member Only)

NHS3100UK/A1Z Details

Manufacturer Part Number:
NHS3100UK/A1Z
Brand Name:
NXP Semiconductor
Rohs Code:
Yes
Part Life Cycle Code:
Active
HTS Code:
8542.32.00
Factory Lead Time:
39 Weeks
Manufacturer:
NXP Semiconductors
YTEOL:
6
Moisture Sensitivity Level:
1
Peak Reflow Temperature (Cel):
260
Time@Peak Reflow Temperature-Max (s):
30
uPs/uCs/Peripheral ICs Type:
Temperature Sensor Monitor

NHS3100UK/A1Z Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common mode filter to reduce EMI.
Calibrate the sensor using the built-in calibration registers. Ensure good thermal contact between the sensor and the object being measured. Use a low-pass filter to reduce noise and increase accuracy.
The maximum cable length for the I2C interface is 10 meters, but it's recommended to keep it as short as possible to minimize signal degradation and noise.
No, the NHS3100UK/A1Z is designed to operate with a 3.3V power supply. Using a 5V power supply may damage the device.
Connect the interrupt signals to a dedicated interrupt pin on your microcontroller. Use a pull-up resistor and a debouncing circuit to ensure reliable interrupt detection.

Trust Checks

Community Provided

System Verified

Community Approved

NHS3100UK/A1Z Overview

Use the download button to access the NHS3100UK/A1Z schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like NHS31, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
