NHS3152UK/A1Z - NXP

Description: NXP - NHS3152UK/A1Z - RFID READER, 13.56MHZ, WLCSP-25

Download NHS3152UK/A1Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

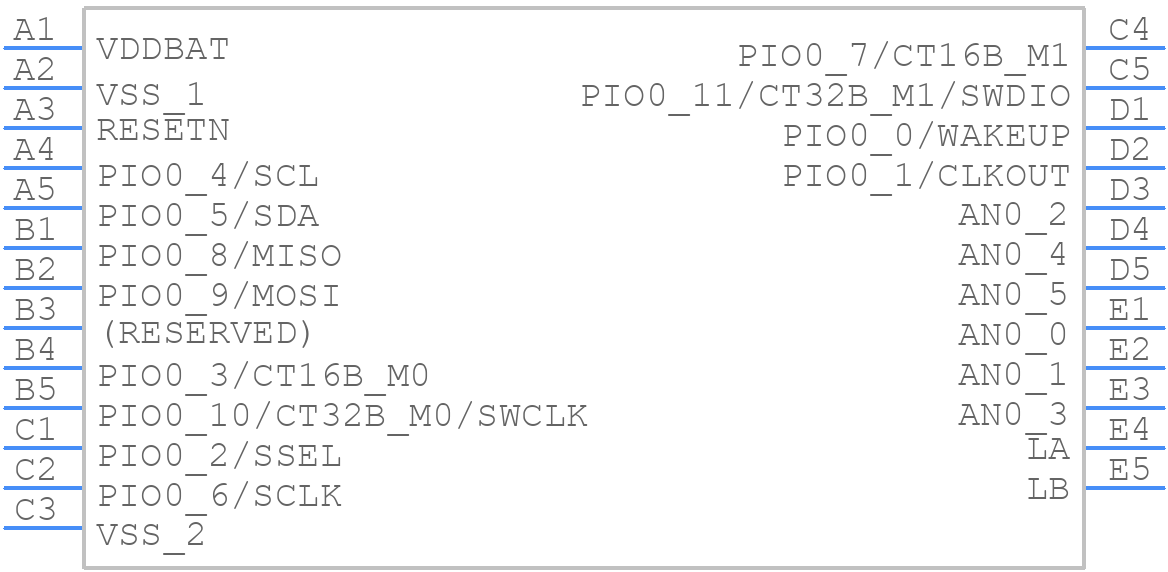

NHS3152UK/A1Z - NXP - PCB symbol
click to zoom
PCB Footprints
NHS3152UK/A1Z - NXP PCB footprint - BGA - BGA - WLCSP25: wafer level chip-scale package, 25 balls; 2.51 x 2.51 x 0.5 mm
click to zoom
3D Models
NHS3152UK/A1Z - NXP - 3D model - BGA - WLCSP25: wafer level chip-scale package, 25 balls; 2.51 x 2.51 x 0.5 mm
click to zoom

NHS3152UK/A1Z Details

  • Manufacturer Part Number:

    NHS3152UK/A1Z

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.32.00

  • Factory Lead Time:

    39 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    6

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR CIRCUIT

NHS3152UK/A1Z Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN11529, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The input capacitor value depends on the input voltage, output voltage, and output current. A general guideline is to use a capacitor with a value between 1uF to 10uF, with a voltage rating at least 1.5 times the input voltage. NXP recommends using a capacitor with low ESR (Equivalent Series Resistance) to minimize voltage ripple and ensure stable operation.
  • While the datasheet specifies an operating temperature range of -40°C to 125°C, NXP recommends an ambient temperature of up to 105°C for reliable operation. Exceeding this temperature may affect the device's performance, reliability, and lifespan.
  • To ensure EMC compliance, follow the guidelines in the application note AN11529, which includes recommendations for PCB layout, component selection, and shielding. Additionally, consider using a metal shield or a shielded inductor to reduce electromagnetic radiation.
  • The output capacitor value and type depend on the output voltage, output current, and desired ripple voltage. A general guideline is to use a capacitor with a value between 1uF to 22uF, with a voltage rating at least 1.5 times the output voltage. NXP recommends using a low-ESR ceramic or film capacitor to minimize voltage ripple and ensure stable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NHS3152UK/A1Z Overview

Use the download button to access the NHS3152UK/A1Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NHS31, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
