Part Image

NI-10M-2503 - TAITIEN

Description: 10 MHz OCXO Sine Wave Oscillator 5V 6-DIP (1.000", 25.40mm), 5 Leads

Download NI-10M-2503 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

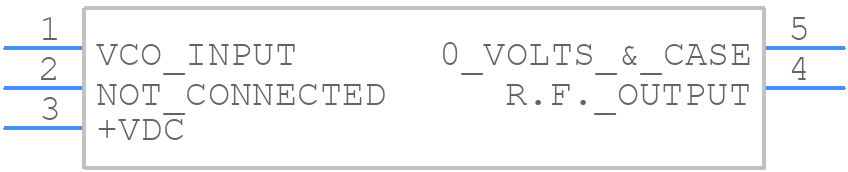

Symbol
NI-10M-2503 - TAITIEN - PCB symbol
click to zoom

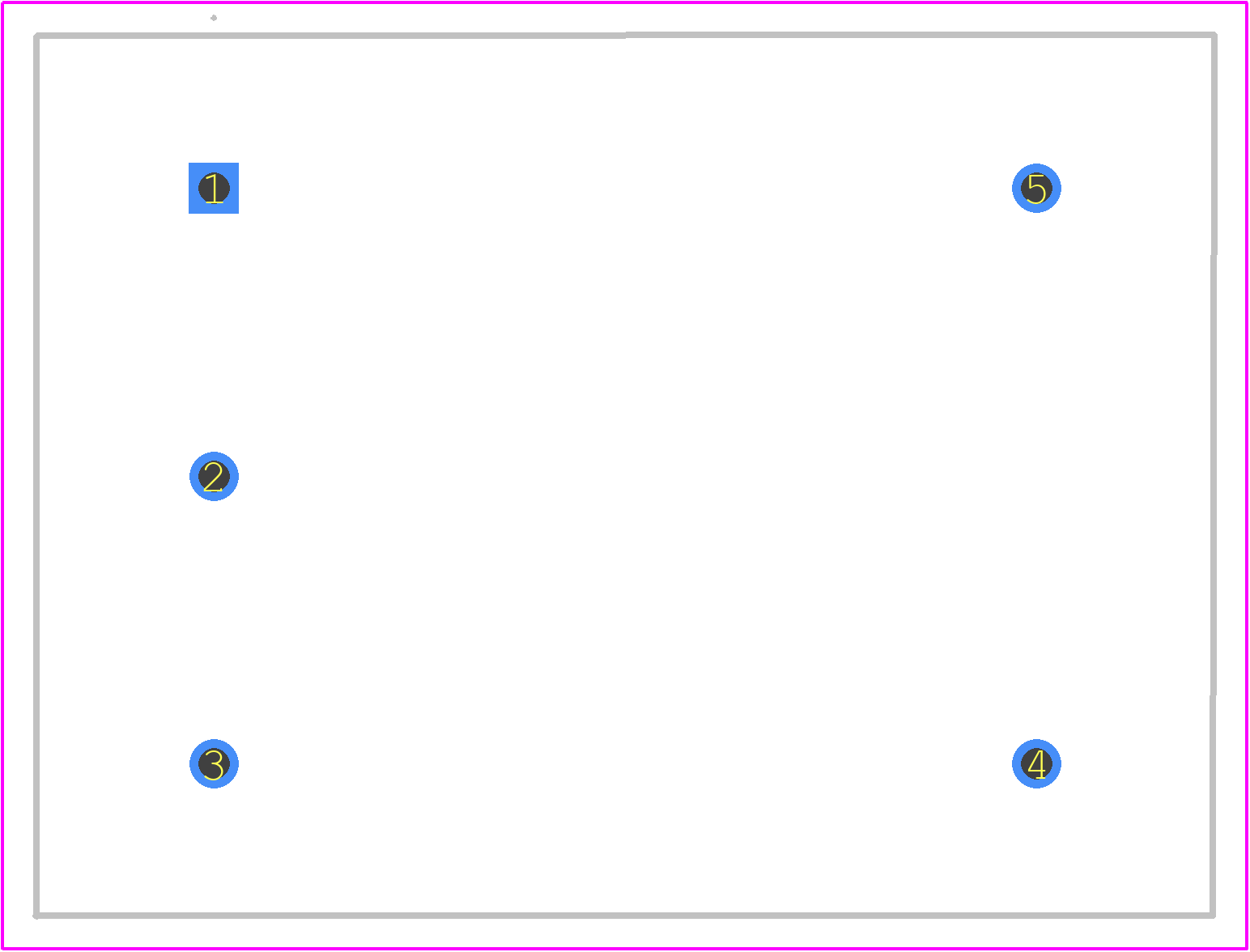

PCB Footprints
NI-10M-2503 - TAITIEN PCB footprint - Other - Other - 6-DIP ,5 Leads
click to zoom
3D Models
NI-10M-2503 - TAITIEN - 3D model - Other - 6-DIP ,5 Leads
click to zoom

NI-10M-2503 Details

  • Manufacturer Part Number:

    NI-10M-2503

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-5

  • Manufacturer:

    Taitien Electronics Co Ltd

  • YTEOL:

    9

  • Aging:

    0.05 PPM/YEAR

  • Control Voltage-Max:

    5 V

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    0.003%

  • Frequency Stability-Voltage:

    0.0005 ppm

  • Input Power:

    1.3 W

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    5

  • Offset Frequency:

    1 kHz

  • Operating Frequency-Nom:

    10 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    SINE

  • Output Impedance:

    50 Ω

  • Output Level:

    1.589 V

  • Oven Supply Voltage:

    5V

  • Package Equivalence Code:

    DIP5,.7,350

  • Phase Noise:

    -148 dBc/Hz

  • Physical Dimension:

    36.32mm x 27.18mm x 12.7mm

  • Screening Level:

    MIL-STD-202

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN SILVER COPPER OVER NICKEL

  • Warm-up Power:

    4 W

  • Warm-up Time-Max:

    10 Minute

NI-10M-2503 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the NI-10M-2503 is -40°C to 85°C, although it can tolerate storage temperatures from -55°C to 125°C.
  • To ensure reliable startup, make sure to decouple the power supply lines with capacitors (e.g., 10nF and 100nF) and provide a stable voltage supply within the recommended range (1.8V to 3.3V).
  • The typical current consumption of the NI-10M-2503 is around 10mA to 15mA, depending on the output load and frequency.
  • Yes, the NI-10M-2503 is designed to operate in high-vibration environments, with a vibration resistance of up to 20G (sinusoidal vibration, 10Hz to 2kHz).
  • The output frequency of the NI-10M-2503 can be adjusted by connecting an external resistor (R1) between the FREQ_ADJ pin and GND. The frequency adjustment range is ±5% of the nominal frequency.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NI-10M-2503 Overview

Use the download button to access the NI-10M-2503 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NI-10, or try a keyword search, such as OCVCXO
