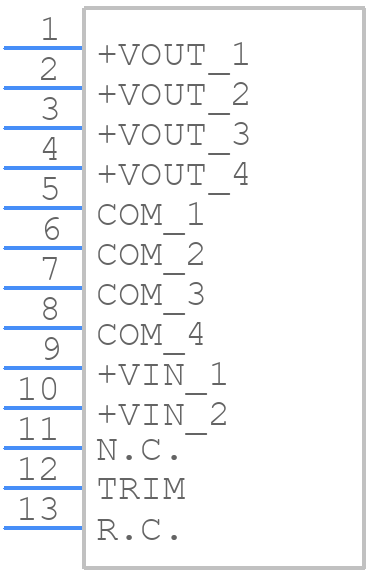

NID100-12 - Mean Well

NID100-12 Details

• Manufacturer Part Number:

  NID100-12

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

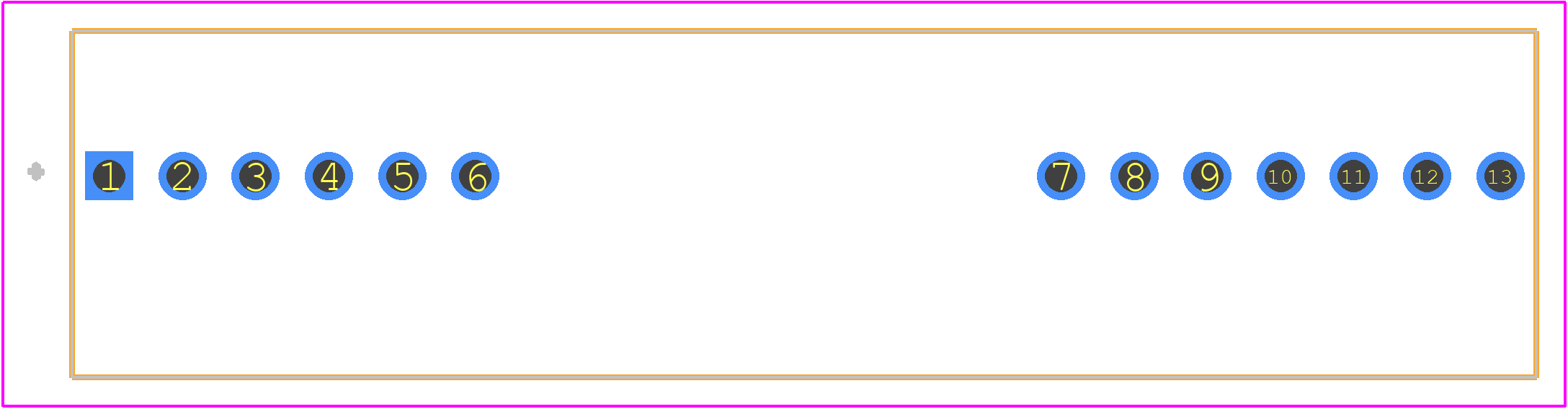

• Package Description:

  SIP-13

• ECCN Code:

  EAR99

• Factory Lead Time:

  19 Weeks, 3 Days

• Date Of Intro:

  2020-10-15

• Manufacturer:

  Mean Well

• YTEOL:

  6

• Additional Feature:

  48V INPUT ALSO AVAILABLE

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CE, EN, EAC, UKCA

• Efficiency (Main Output):

  96%

• Input Voltage-Max:

  53 V

• Input Voltage-Min:

  20 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-XSIP-T13

• Length:

  50.8 mm

• Line Regulation-Max:

  0.5%

• Load Regulation-Max:

  0.5%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  13

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

• Output Current-Max:

  7.5 A

• Output Voltage-Max:

  12.24 V

• Output Voltage-Min:

  11.76 V

• Output Voltage-Nom:

  12 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  SIP

• Package Equivalence Code:

  SIP13,.16

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Protections:

  OVER LOAD; OVER VOLTAGE; SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.04242 Vrms

• Seated Height-Max:

  12 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  THROUGH-HOLE

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Total Power Output-Max:

  90 W

• Trim/Adjustable Output:

  YES

• Width:

  27.5 mm
