Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for NINA-B112
- Part Number NINA-B112
- Manufacturer u-blox
- Pin Count 42
- Part Category Undefined or Miscellaneous
- Package Category Other
- Footprint Name Other - NINA-B112
- Released Date Oct 19, 2017
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
NINA-B112 Details
-
Manufacturer Part Number:
NINA-B112
-
Part Life Cycle Code:
Active
-
HTS Code:
8542.31.00.30
-
Manufacturer:
u-blox AG
-
JESD-30 Code:
R-XXMA-N
-
Length:
14 mm
-
Operating Temperature-Max:
85 °C
-
Operating Temperature-Min:
-40 °C
-
Package Body Material:
UNSPECIFIED
-
Package Code:
XMA
-
Package Shape:
RECTANGULAR
NINA-B112 Frequently Asked Questions (FAQs)
-
The maximum transmit power of the NINA-B112 module is +20 dBm.
-
To configure the NINA-B112 module for low power consumption, you can use the AT command 'AT+ULPM' to set the module to low power mode. Additionally, you can also use the 'AT+CPWROFF' command to turn off the module's power amplifier to reduce power consumption.
-
Yes, you can use the NINA-B112 module with a non-u-blox antenna, but it is recommended to use a u-blox-approved antenna to ensure optimal performance and compliance with regulatory requirements.
-
You can update the firmware of the NINA-B112 module using the u-blox 'u-center' software tool, which provides a graphical user interface for updating the firmware and configuring the module.
-
The operating temperature range of the NINA-B112 module is -40°C to +85°C.
Trust Checks
Expert Contribution
System Verified
Community Approved
NINA-B112 Overview

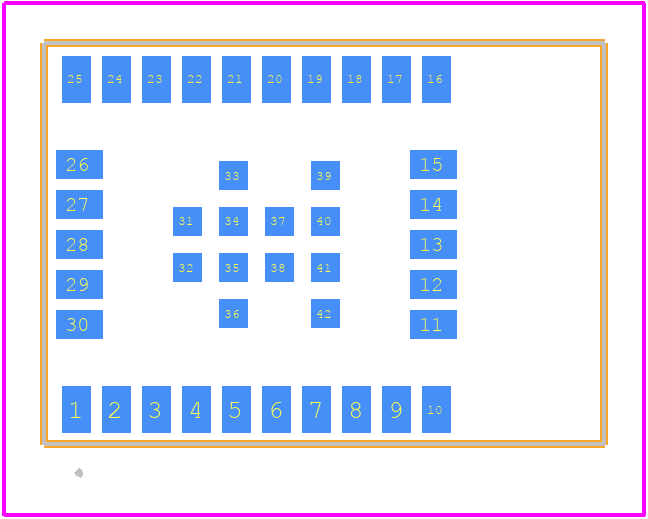

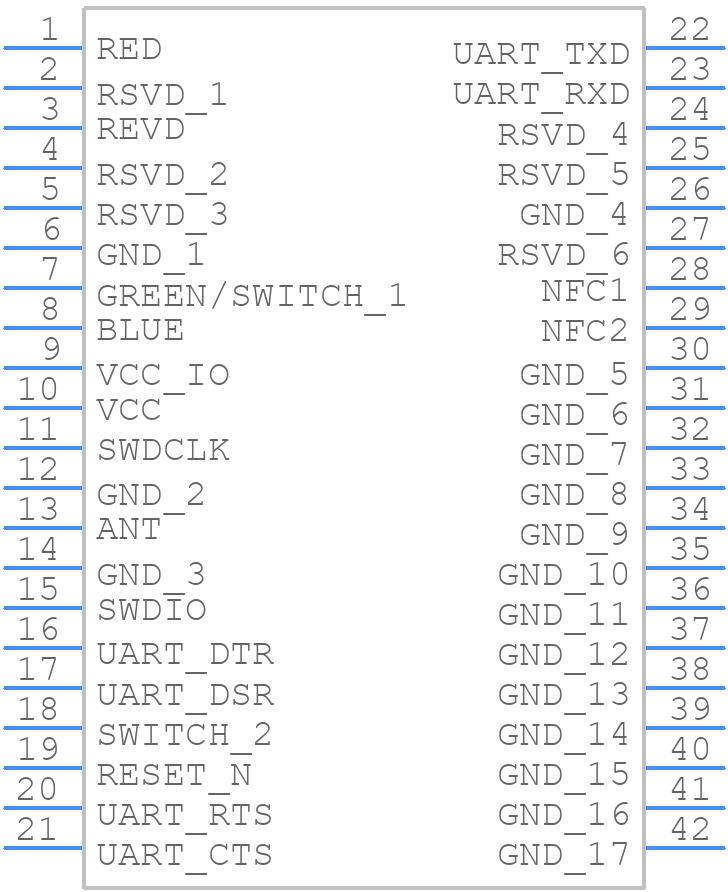

Use the download button to access the NINA-B112 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like NINA-,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
