NINA-B400-00B - u-blox

Description: Bluetooth Modules - 802.15.1 nRF52833, U.FL connector, open CPU

Download NINA-B400-00B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NINA-B400-00B - u-blox - PCB symbol
click to zoom

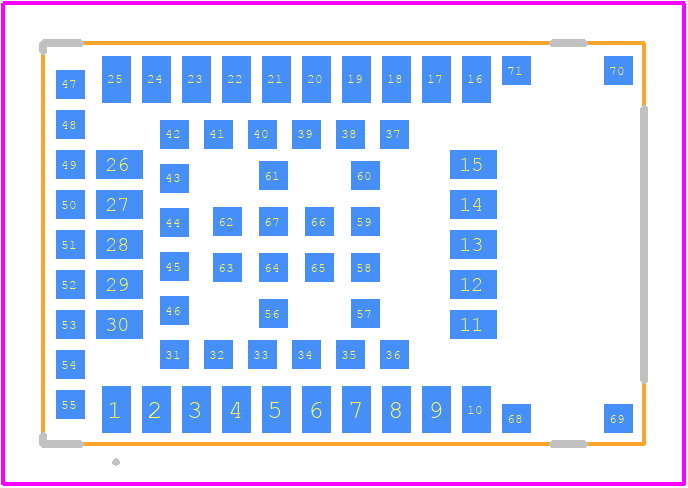

PCB Footprints
NINA-B400-00B - u-blox PCB footprint - Other - Other - NINA-B400-00B-2
click to zoom
3D Models
NINA-B400-00B - u-blox - 3D model - Other - NINA-B400-00B-2
click to zoom

NINA-B400-00B Details

  • Manufacturer Part Number:

    NINA-B400-00B

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-55

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    u-blox AG

  • JESD-30 Code:

    R-XXMA-N55

  • Length:

    15 mm

  • Number of Terminals:

    55

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Equivalence Code:

    MODULE,55LEAD(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    2.63 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

NINA-B400-00B Frequently Asked Questions (FAQs)

  • The maximum power consumption of the NINA-B400-00B module is around 350mA during transmission and 50mA during reception, according to the datasheet.
  • To configure the NINA-B400-00B module for BLE mode, you need to set the module to BLE mode using the AT command 'AT+UBTLEMODE=1'. Then, you can use the 'AT+GAPCONNECT' command to establish a BLE connection.
  • The range of the NINA-B400-00B module's BLE transmission is up to 200 meters (656 feet) in open space, but this can be affected by obstacles, interference, and other environmental factors.
  • Yes, you can use the NINA-B400-00B module with a non-u-blox antenna, but you need to ensure that the antenna is compatible with the module's frequency band and has the correct impedance matching.
  • You can update the firmware of the NINA-B400-00B module using the u-blox WISA (Wireless Internet Software Application) tool, which is available on the u-blox website.
