- Stock & Prices $ Price & Stock for NINA-W132-00B-01
- Part Number NINA-W132-00B-01
- Manufacturer u-blox
- Pin Count 48
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - 36-SMD Module
- Released Date Nov 9, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
NINA-W132-00B-01 Details
-
Manufacturer Part Number:
NINA-W132-00B-01
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
MODULE-36
-
HTS Code:
8542.31.00.30
-
Date Of Intro:
2019-01-04
-
Manufacturer:
u-blox AG
-
YTEOL:
0
-
Additional Feature:
-40 TO 85 EXTENDED TEMP ALSO AVAILABLE
-
JESD-30 Code:
R-XXMA-N36
-
Length:
14 mm
NINA-W132-00B-01 Frequently Asked Questions (FAQs)
-
The recommended antenna design for the NINA-W132-00B-01 module is a PCB antenna with a size of 15mm x 15mm, and a distance of 10mm from the module's edge. u-blox provides an antenna design guide for reference.
-
To configure the module's power modes, use the AT command set. Specifically, use the AT+CPWROFF command to turn off the module, and AT+CPWRON command to turn it back on. You can also use the AT+CPSMS command to set the power mode to 'PSM' (Power Saving Mode) or 'eDRX' (extended Discontinuous Reception) to achieve low power consumption.
-
The maximum transmission power of the NINA-W132-00B-01 module is +23 dBm for GSM and +20 dBm for LTE.
-
To implement secure communication with the NINA-W132-00B-01 module, use the built-in SSL/TLS protocol support. You can also use the module's secure boot mechanism to ensure the authenticity and integrity of the firmware.
-
The operating temperature range of the NINA-W132-00B-01 module is -40°C to +85°C.
Trust Checks
Expert Contribution
System Verified
Community Approved
NINA-W132-00B-01 Overview

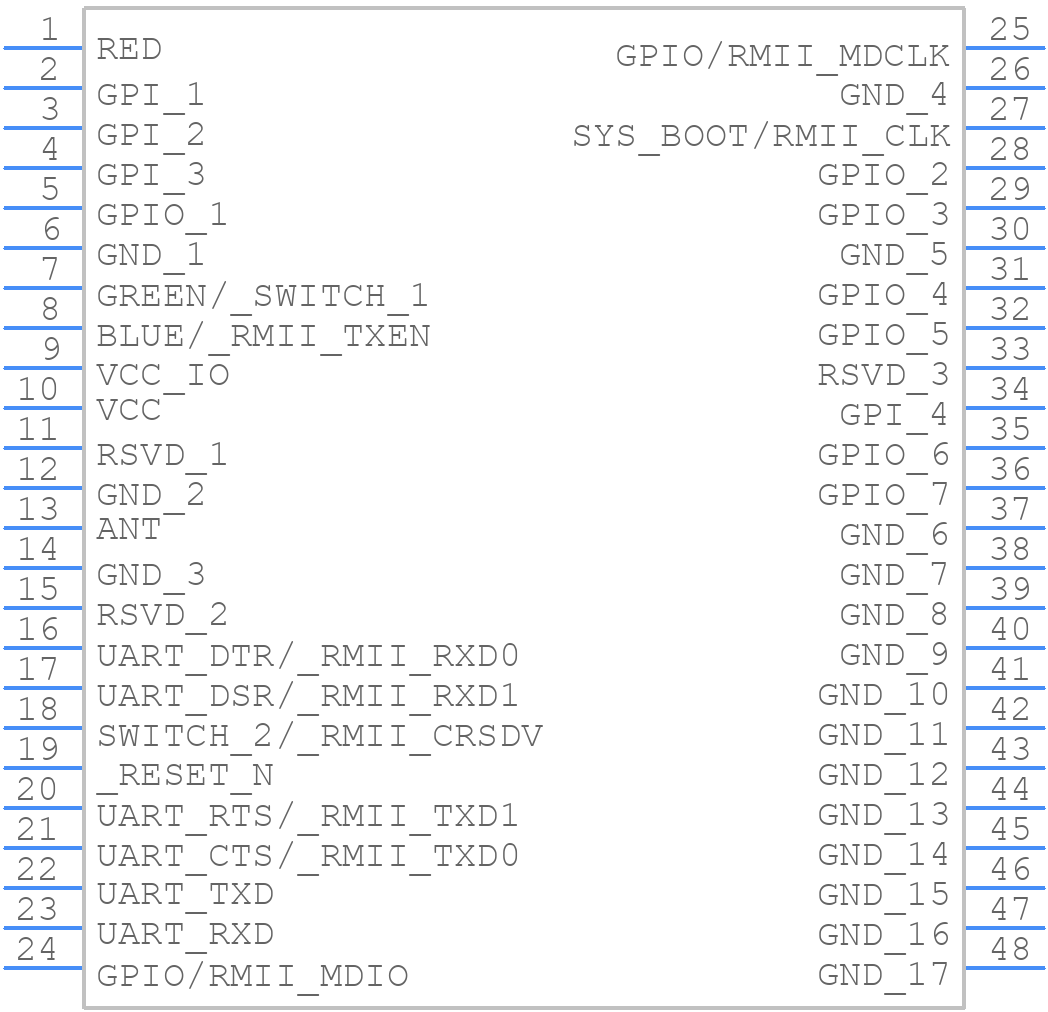

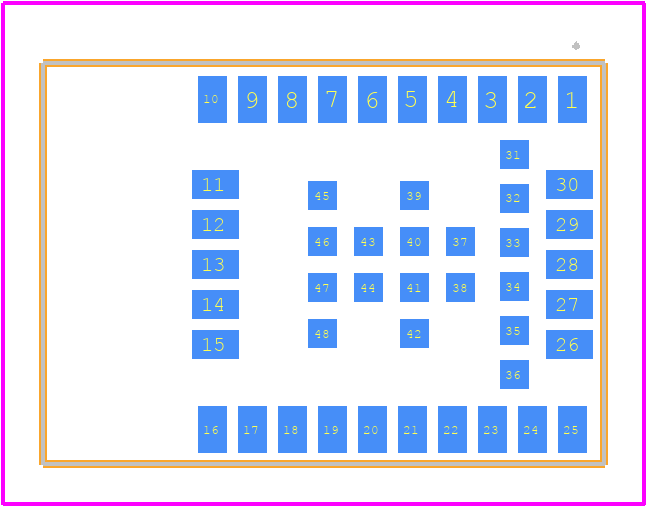

Use the download button to access the NINA-W132-00B-01 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NINA-,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
About u-blox
u-blox is a Swiss company, specializing in advanced positioning and wireless communication technologies. It provides high-performance GNSS (Global Navigation Satellite System) and cellular communication modules, chips, and software for a wide range of industries including automotive, industrial, and consumer electronics. Known for its innovation and reliability, u-blox's products support multiple satellite systems and wireless standards, enabling precise positioning and robust connectivity for applications.
