NINA-W151-00B-00 - u-blox

Description: MULTIRADIO MODULE (WI-FI BLUETOO

Download NINA-W151-00B-00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

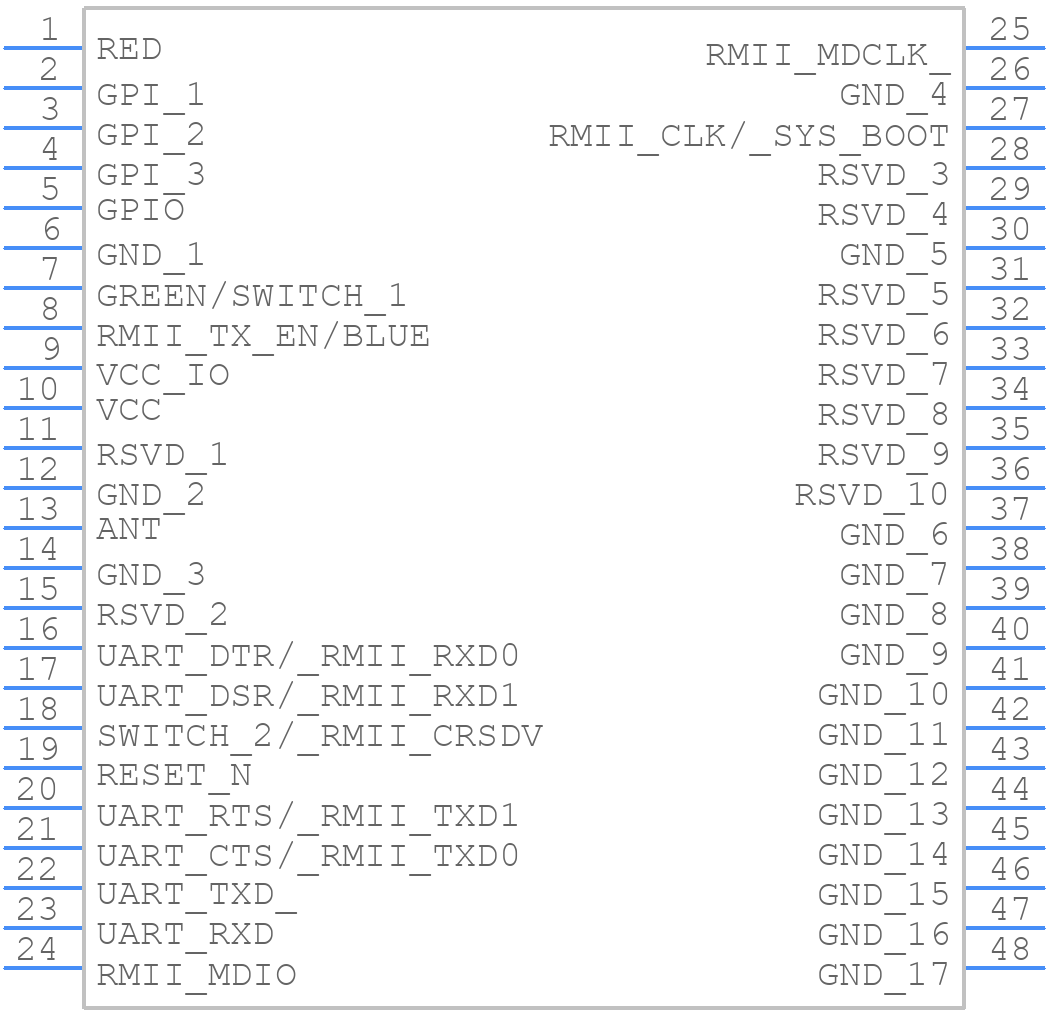

Symbol
NINA-W151-00B-00 - u-blox - PCB symbol
click to zoom
PCB Footprints

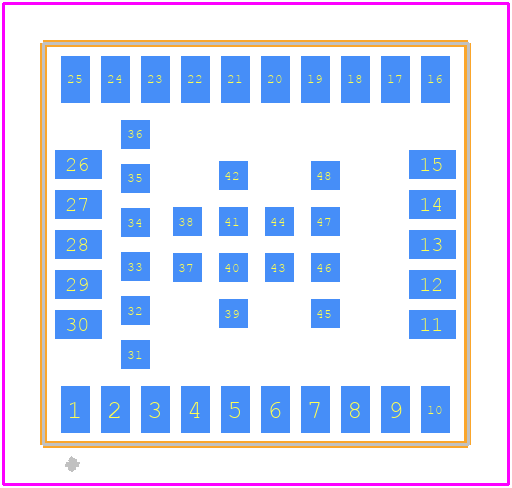

NINA-W151-00B-00 - u-blox PCB footprint - Other - Other - NINA-W151-00B-00-1
click to zoom
3D Models
NINA-W151-00B-00 - u-blox - 3D model - Other - NINA-W151-00B-00-1
click to zoom

NINA-W151-00B-00 Details

  • Manufacturer Part Number:

    NINA-W151-00B-00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MODULE-36

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    u-blox AG

  • YTEOL:

    0

  • JESD-30 Code:

    R-XXMA-N36

  • Length:

    10.6 mm

  • Moisture Sensitivity Level:

    4

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Equivalence Code:

    MODULE,36LEAD(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    2.6 mm

  • Supply Voltage-Max:

    3.45 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

NINA-W151-00B-00 Frequently Asked Questions (FAQs)

  • The maximum power consumption of the NINA-W151-00B-00 module is around 350mA during transmission and 50mA during reception, according to the datasheet. However, in practice, the power consumption can vary depending on the specific use case and configuration.
  • To configure the NINA-W151-00B-00 module for low power consumption, you can use the Power Save Mode (PSM) and Extended Discontinuous Reception (eDRX) features. These features can be enabled through AT commands or using the u-blox CellLocate software. Additionally, you can also optimize the transmission power and data transmission intervals to reduce power consumption.
  • The range of the NINA-W151-00B-00 module's Wi-Fi antenna depends on various factors such as the environment, obstacles, and the strength of the access point. However, in general, the module's Wi-Fi range is around 100-150 meters in open space and 20-50 meters in indoor environments.
  • Yes, you can use the NINA-W151-00B-00 module with a custom antenna. The module has a U.FL connector for the Wi-Fi antenna, and you can connect a custom antenna to this connector. However, you need to ensure that the custom antenna is compatible with the module's frequency band and has the correct impedance matching.
  • You can update the firmware of the NINA-W151-00B-00 module using the u-blox Firmware Update Tool or the u-blox CellLocate software. You need to download the latest firmware version from the u-blox website and follow the instructions provided in the user manual or the software's documentation.
