NINA-W152-00B-00 - u-blox

Description: MULTIRADIO MODULE (WI-FI BLUETOO

Download NINA-W152-00B-00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

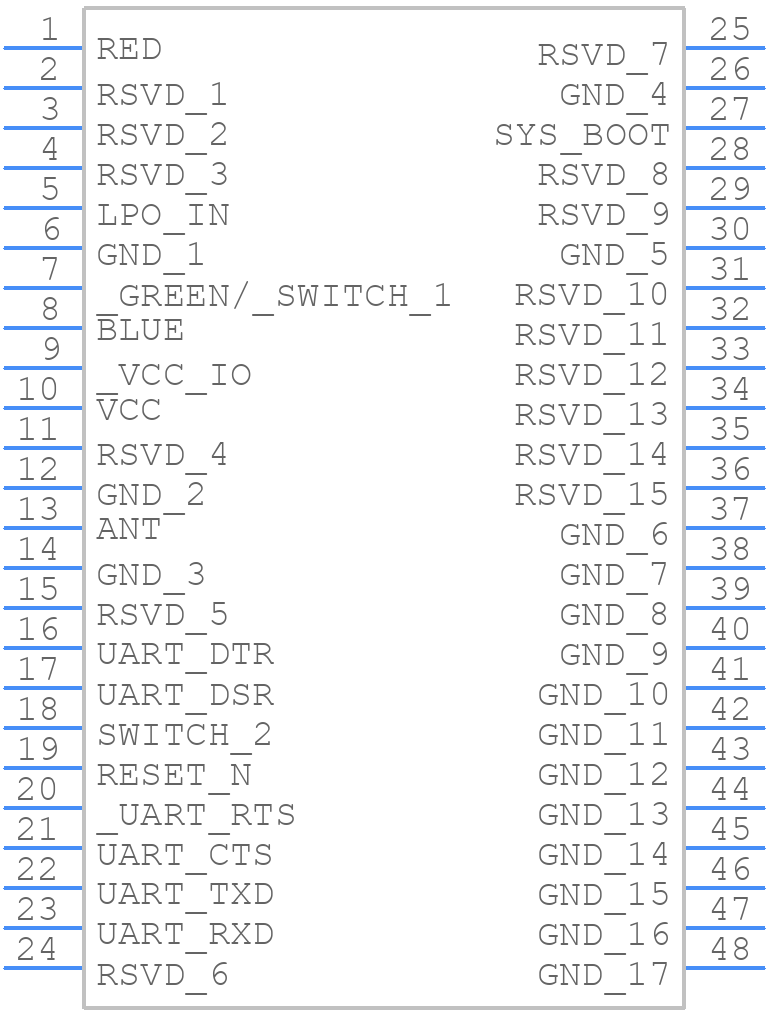

NINA-W152-00B-00 - u-blox - PCB symbol
click to zoom
PCB Footprints

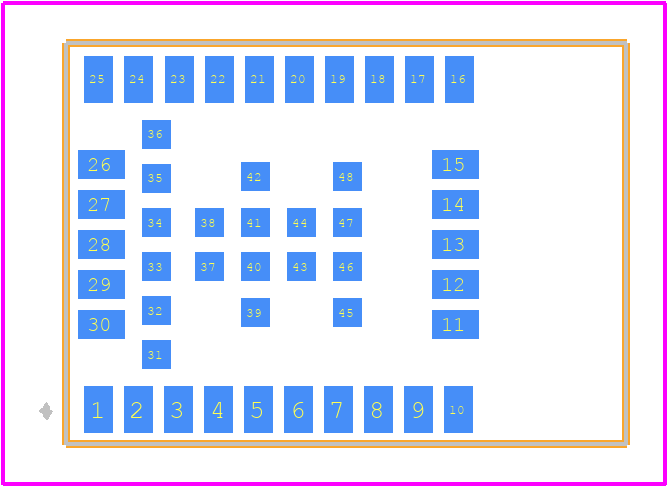

NINA-W152-00B-00 - u-blox PCB footprint - Other - Other - NINA-W152-00B-00-2
click to zoom
3D Models
NINA-W152-00B-00 - u-blox - 3D model - Other - NINA-W152-00B-00-2
click to zoom

NINA-W152-00B-00 Details

  • Manufacturer Part Number:

    NINA-W152-00B-00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MODULE-36

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    2020-04-23

  • Manufacturer:

    u-blox AG

  • YTEOL:

    0

  • JESD-30 Code:

    R-XXMA-N36

  • Length:

    14 mm

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Equivalence Code:

    MODULE,36LEAD(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    4.2 mm

  • Supply Voltage-Max:

    3.45 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

NINA-W152-00B-00 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NINA-W152-00B-00 module is -40°C to +85°C.
  • The NINA-W152-00B-00 module has several power modes, including sleep, deep sleep, and shutdown. To configure these modes, use the AT command set, such as AT+PSM to set the power saving mode, AT+CFUN to set the functionality, and AT+CPWR to set the power mode.
  • The maximum data transfer rate for the NINA-W152-00B-00 module is up to 3.1 Mbps for HSPA and up to 5.76 Mbps for HSUPA.
  • The NINA-W152-00B-00 module supports various security features, including SSL/TLS, HTTPS, and secure boot. To implement secure communication, use the AT command set to configure the security settings, such as AT+SSL to set up an SSL/TLS connection.
  • The recommended antenna design for the NINA-W152-00B-00 module is a monopole or dipole antenna with a gain of around 2 dBi. The antenna should be designed to operate in the frequency range of 824 MHz to 960 MHz and 1710 MHz to 2170 MHz.
