- Part Number NINA-W152-00B
- Manufacturer u-blox
- Pin Count 48
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - NINA-W152-00B-2
- Released Date Oct 20, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
NINA-W152-00B Details
-
Manufacturer Part Number:
NINA-W152-00B
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
MODULE-36
-
HTS Code:
8542.31.00.30
-
Manufacturer:
u-blox AG
-
YTEOL:
0
-
JESD-30 Code:
R-XXMA-N36
-
Length:
14 mm
-
Moisture Sensitivity Level:
4
-
Number of Terminals:
36
NINA-W152-00B Frequently Asked Questions (FAQs)
-
The maximum transmit power of the NINA-W152-00B module is +20 dBm.
-
To configure the module for low power consumption, you can use the AT command 'AT+ULPM' to set the module to low power mode. Additionally, you can also use the 'AT+CPWROFF' command to turn off the module's power amplifier to reduce power consumption.
-
The operating temperature range of the NINA-W152-00B module is -40°C to +85°C.
-
Yes, you can use the NINA-W152-00B module with a non-u-blox antenna, but it is recommended to use a u-blox-approved antenna to ensure optimal performance and compliance with regulatory requirements.
-
You can update the firmware of the NINA-W152-00B module using the u-blox u-center software tool, which provides a user-friendly interface for updating the firmware and configuring the module.
Trust Checks
Expert Contribution
System Verified
Community Approved
NINA-W152-00B Overview

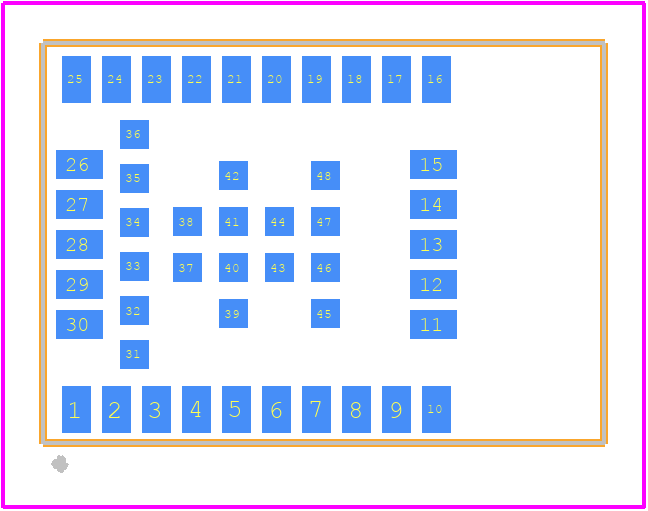

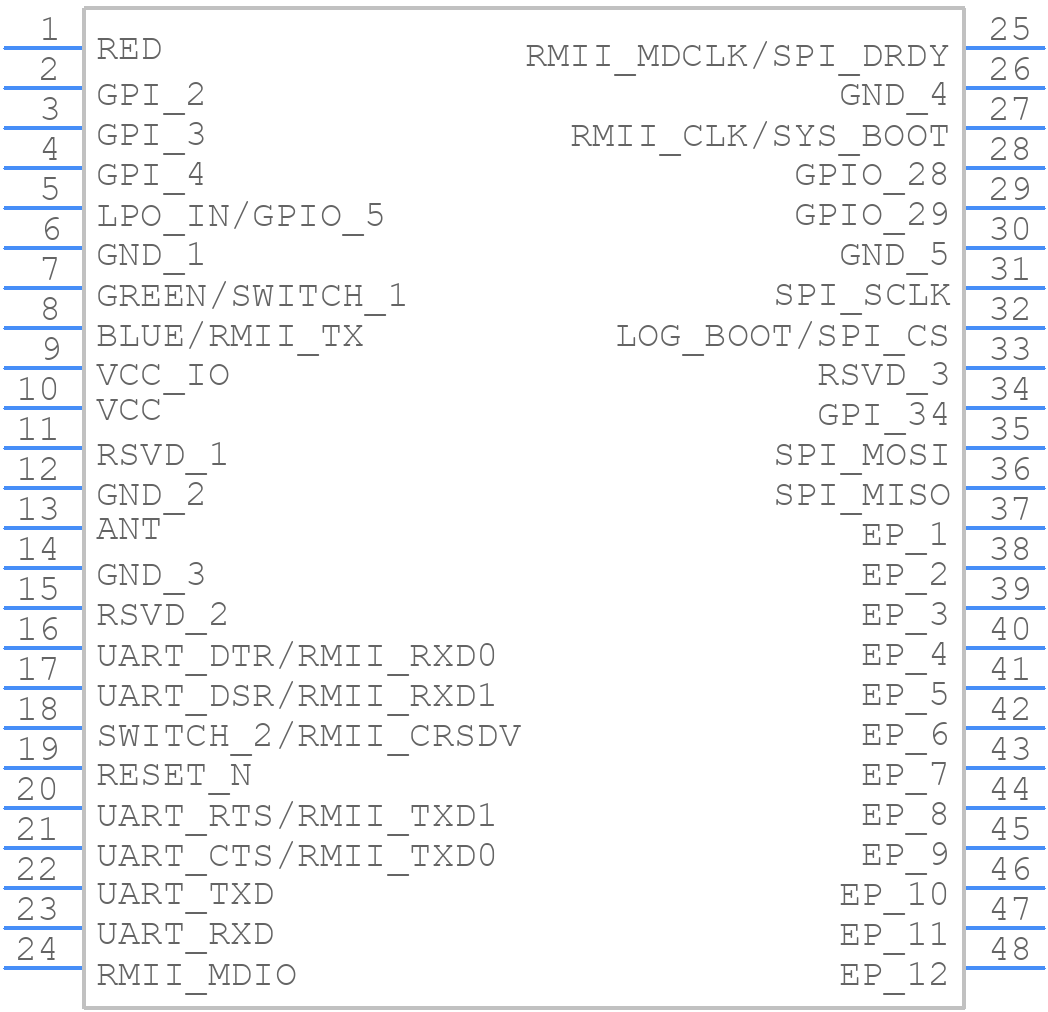

Use the download button to access the NINA-W152-00B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NINA-,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
About u-blox
u-blox is a Swiss company, specializing in advanced positioning and wireless communication technologies. It provides high-performance GNSS (Global Navigation Satellite System) and cellular communication modules, chips, and software for a wide range of industries including automotive, industrial, and consumer electronics. Known for its innovation and reliability, u-blox's products support multiple satellite systems and wireless standards, enabling precise positioning and robust connectivity for applications.
