NJG1635AHB6 - Nisshinbo

Description: SPDT SWITCH GaAs MMIC +1.3V~+4.5V ,+2.5~+4.5V,,0.30dB typ. @f=0.9GHz, PIN=30dBm, VDD=2.7V,160 mW,-55~+150 °C

Download NJG1635AHB6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

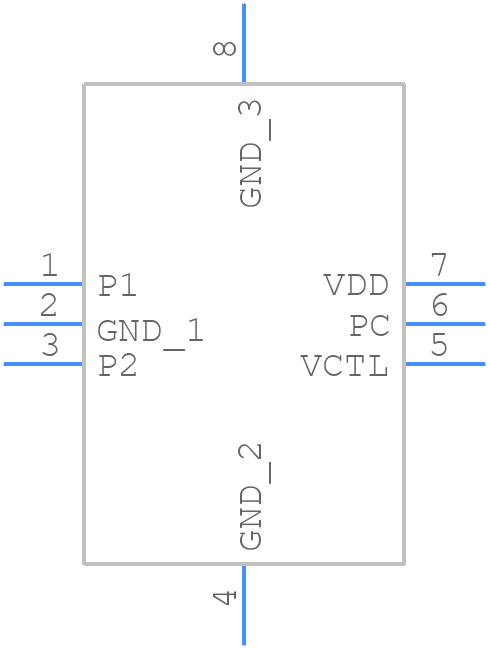

NJG1635AHB6 - Nisshinbo - PCB symbol
