A good PCB layout practice for NJL0302DG is to keep the input and output traces short and away from each other, use a solid ground plane, and add a 10nF capacitor between the input and ground to filter out high-frequency noise.
To ensure the NJL0302DG operates within its SOA, monitor the device's junction temperature, output current, and input voltage. Make sure the device is not exposed to excessive voltage, current, or temperature, and provide adequate heat sinking if necessary.
The maximum allowed voltage drop across the NJL0302DG is typically around 0.5V to 1V, depending on the specific application and operating conditions. Exceeding this voltage drop may lead to reduced performance, increased power dissipation, or even device failure.
The NJL0302DG is rated for operation up to 150°C, but its performance and reliability may degrade at higher temperatures. If you need to operate the device in a high-temperature environment, ensure you provide adequate heat sinking and follow the recommended derating guidelines.
To protect the NJL0302DG from overvoltage and overcurrent, use a voltage regulator or a voltage clamp to limit the input voltage, and add a current-limiting resistor or a fuse to prevent excessive current. You can also consider using a dedicated overvoltage protection (OVP) and overcurrent protection (OCP) circuit.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NJL0302DG Overview

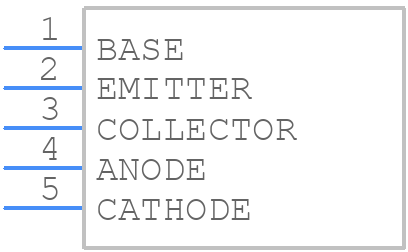

Use the download button to access the NJL0302DG schematic symbol, PCB footprint, and 3D model.
