NJL1302DG - onsemi

Description: Thermally matched bias diode to eliminate thermal runaway; Instant thermal bias tracking for superior sound quality; Absolute Thermal Integrity; High safe operating area; Pb-Free Packages are Available

Download NJL1302DG Model

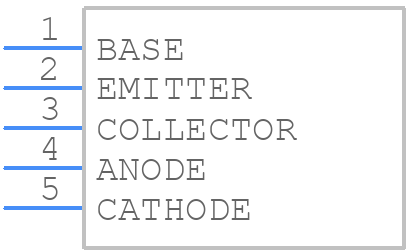

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NJL1302DG - onsemi PCB footprint - Other - Other - NJL1302DG-1
click to zoom
3D Models
NJL1302DG - onsemi  - 3D model - Other - NJL1302DG-1
click to zoom

NJL1302DG Details

  • Manufacturer Part Number:

    NJL1302DG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TO-264, 5-Lead

  • Package Description:

    TO-264, 5 PIN

  • Pin Count:

    5

  • Manufacturer Package Code:

    340AA

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    4

  • Additional Feature:

    HIGH RELIABILITY

  • Collector Current-Max (IC):

    15 A

  • Collector-Emitter Voltage-Max:

    260 V

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DC Current Gain-Min (hFE):

    45

  • JESD-30 Code:

    R-PSFM-T5

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    PNP

  • Power Dissipation-Max (Abs):

    200 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    30 MHz

NJL1302DG Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for NJL1302DG is 2.7V to 5.5V.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm.
  • The maximum input voltage that NJL1302DG can withstand is 6.5V.
  • Yes, NJL1302DG can be used in high-temperature applications up to 125°C, but the output current should be derated accordingly.
  • The power dissipation of NJL1302DG can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
