A recommended PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range (up to 125°C) and to provide adequate heat sinking. Additionally, consider using a thermal interface material (TIM) between the device and the heat sink to improve thermal conductivity.
The NJL7502R-TE1 has built-in ESD protection, but it's still important to follow proper handling and assembly procedures to prevent damage. Use an ESD wrist strap or mat, and ensure that the device is stored in an anti-static bag or container.
While the NJL7502R-TE1 is designed to operate in a wide range of temperatures, it's not specifically designed for high-humidity environments. If you need to operate in a humid environment, consider using a conformal coating or potting the device to protect it from moisture.
The recommended soldering profile for the NJL7502R-TE1 is a peak temperature of 260°C, with a dwell time of 10-30 seconds. It's essential to follow the recommended soldering profile to prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NJL7502R-TE1 Overview

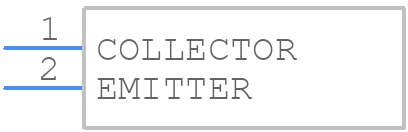

Use the download button to access the NJL7502R-TE1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NJL75,
or try a keyword search, such as Photo Transistors
