NJM062D - JRC

Description: J-FET INPUT OPERATIONAL AMPLIFIER

Download NJM062D Model

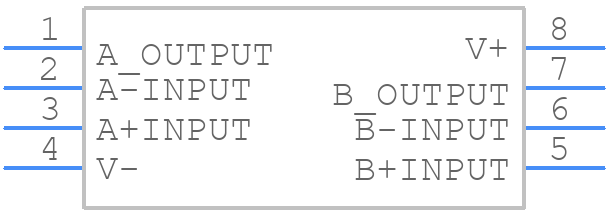

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NJM062D - JRC PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP8
click to zoom
3D Models
NJM062D - JRC  - 3D model - Dual-In-Line Packages - DIP8
click to zoom

NJM062D Details

  • Manufacturer Part Number:

    NJM062D

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    New Japan Radio Co Ltd

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0004 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    15000 µV

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e6

  • Length:

    8.8 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.7 mm

  • Slew Rate-Nom:

    3.5 V/us

  • Supply Current-Max:

    1 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN BISMUTH

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    1000

  • Voltage Gain-Min:

    3162.3

  • Width:

    7.62 mm

NJM062D Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for NJM062D is 2.7V to 5.5V.
  • To ensure the stability of the output voltage, it is recommended to use a 10uF capacitor at the output pin and a 0.1uF capacitor at the input pin.
  • The maximum output current of NJM062D is 150mA.
  • To protect NJM062D from overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device at maximum power for extended periods.
  • Yes, NJM062D can be used in high-temperature environments up to 125°C, but the output current should be derated accordingly.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NJM062D Overview

Use the download button to access the NJM062D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NJM06, or try a keyword search, such as Operational Amplifiers
