A good PCB layout for the NJM072D should minimize parasitic capacitance and inductance. Keep the input and output traces short and away from each other, and use a solid ground plane to reduce noise. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
The NJM072D has built-in ESD protection, but it's still important to follow proper handling and storage procedures to prevent damage. Use an anti-static wrist strap or mat when handling the device, and store it in an anti-static bag or container.
The maximum power dissipation for the NJM072D is dependent on the ambient temperature and the thermal resistance of the PCB. As a general rule, keep the junction temperature below 150°C to ensure reliable operation. Use a heat sink or thermal pad if necessary.
The NJM072D is rated for operation up to 125°C, but its performance may degrade at high temperatures. If you need to operate the device in a high-temperature environment, consider using a thermally-enhanced package or a different op-amp designed for high-temperature operation.
To reduce noise and oscillations, use a low-ESR capacitor for decoupling, keep the input and output traces short and well-separated, and use a ferrite bead or common-mode choke to filter out high-frequency noise. Additionally, ensure that the power supply is well-regulated and low-noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NJM072D Overview

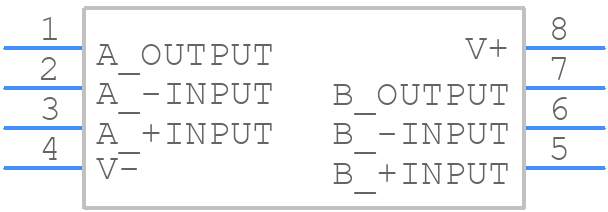

Use the download button to access the NJM072D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NJM07,
or try a keyword search, such as Operational Amplifiers
