A good PCB layout for NJM12904D involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a shielded cable for the input and output connections to reduce EMI.
To ensure the stability of the output voltage in NJM12904D, it's essential to use a suitable output capacitor with a low ESR value, such as a ceramic or film capacitor. Additionally, the input voltage should be well-regulated, and the device should be operated within its recommended operating conditions.
The maximum allowable power dissipation for NJM12904D depends on the ambient temperature and the thermal resistance of the device. According to the datasheet, the maximum power dissipation is 1.5W at an ambient temperature of 25°C. However, this value can be derated at higher temperatures.
NJM12904D is rated for operation up to 85°C, but its performance and reliability may degrade at higher temperatures. If operation above 85°C is required, it's recommended to consult with the manufacturer or use a different device specifically designed for high-temperature applications.
To troubleshoot issues with NJM12904D, start by checking the input voltage, output voltage, and current consumption using an oscilloscope or multimeter. Verify that the device is operated within its recommended operating conditions and that the PCB layout is correct. If the issue persists, consult the datasheet and application notes or contact the manufacturer's technical support.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NJM12904D Overview

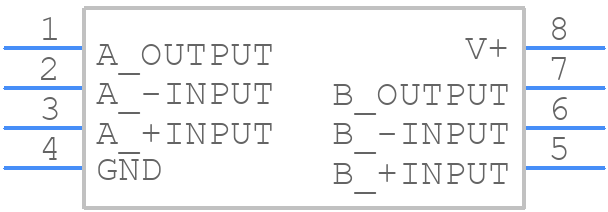

Use the download button to access the NJM12904D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NJM12,
or try a keyword search, such as Audio/Video Amplifiers
