A good PCB layout for the NJM14558D should minimize parasitic inductance and capacitance. Keep the input and output traces short and away from noise sources. Use a solid ground plane and decouple the power supply pins with 0.1uF capacitors.
The NJM14558D has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that all equipment is properly grounded.
The maximum power dissipation for the NJM14558D is dependent on the ambient temperature and package type. For the DIP package, the maximum power dissipation is 500mW at 25°C. For the SOP package, it's 300mW at 25°C. Ensure proper heat sinking and thermal management to prevent overheating.
The NJM14558D is rated for operation up to 85°C, but its performance may degrade at higher temperatures. If you need to operate the device in a high-temperature environment, consider using a thermally enhanced package or a different op-amp with a higher temperature rating.
Oscillations or instability issues with the NJM14558D can be caused by poor PCB layout, inadequate decoupling, or incorrect component selection. Check the PCB layout, ensure proper decoupling, and verify that the component values are correct. You can also try adding a small capacitor (e.g., 10pF) between the output and negative input pins to improve stability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NJM14558D Overview

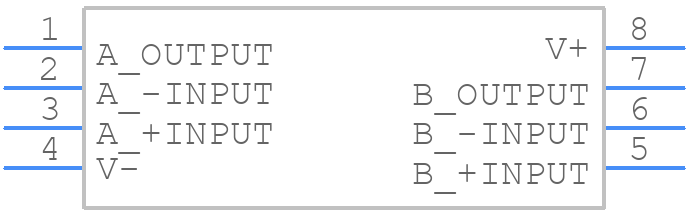

Use the download button to access the NJM14558D schematic symbol, PCB footprint, and 3D model.
