A good PCB layout for NJM2060M involves separating the analog and digital grounds, using a solid ground plane, and placing the IC close to the power supply. Additionally, it's recommended to use a ferrite bead or a 10uF capacitor in series with the power supply to filter out high-frequency noise.
To ensure the NJM2060M operates within its recommended operating conditions, make sure to provide a stable power supply voltage between 2.7V and 5.5V, keep the operating temperature between -40°C and 85°C, and avoid exceeding the maximum ratings for input and output currents.
The NJM2060M can drive a maximum capacitive load of 100pF. Exceeding this limit may cause oscillation or instability in the output voltage.
To troubleshoot issues with the NJM2060M, start by checking the power supply voltage, input and output currents, and the PCB layout. Verify that the IC is properly soldered and that there are no shorts or opens on the board. Use an oscilloscope to measure the output voltage and check for any signs of oscillation or noise.
Yes, the NJM2060M is suitable for high-reliability and automotive applications. It has a high operating temperature range and is designed to meet the requirements of AEC-Q100, a standard for automotive-grade ICs.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NJM2060M Overview

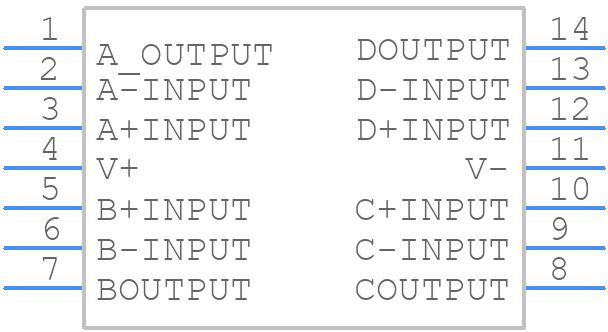

Use the download button to access the NJM2060M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NJM20,
or try a keyword search, such as Operational Amplifiers
