NJM2068DD - Nisshinbo

Description: Operational Amplifiers - Op Amps Dual Low Noise

Download NJM2068DD Model

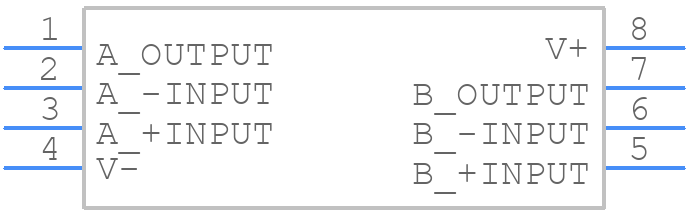

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NJM2068DD - Nisshinbo PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP8
click to zoom
3D Models
NJM2068DD - Nisshinbo  - 3D model - Dual-In-Line Packages - DIP8
click to zoom

NJM2068DD Details

  • Manufacturer Part Number:

    NJM2068DD

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    DIP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Nisshinbo Micro Devices

  • YTEOL:

    3

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    1 µA

  • Bias Current-Max (IIB) @25C:

    1 µA

  • Common-mode Reject Ratio-Min:

    80 dB

  • Common-mode Reject Ratio-Nom:

    110 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    3000 µV

  • JESD-30 Code:

    R-XDIP-T8

  • Length:

    8.8 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    4.25 mm

  • Slew Rate-Nom:

    6 V/us

  • Supply Current-Max:

    8 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    5500

  • Voltage Gain-Min:

    31622.78

  • Wideband:

    NO

  • Width:

    7.62 mm

NJM2068DD Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for NJM2068DD is 2.7V to 5.5V.
  • To ensure the stability of the output voltage, it is recommended to use a 10uF capacitor at the output pin and a 1uF capacitor at the input pin.
  • The maximum output current of NJM2068DD is 500mA.
  • To protect NJM2068DD from overheating, ensure good thermal conductivity by using a heat sink or a thermal pad, and avoid operating the device in high-temperature environments.
  • Yes, NJM2068DD has built-in noise reduction features, but it's still recommended to use noise filters and shielding to minimize electromagnetic interference.
