NJM2115M - Nisshinbo

Description: NJM2115M New Japan Radio, Op Amp, 12MHz, 5 V, 8-Pin DMP

Download NJM2115M Model
Schematic

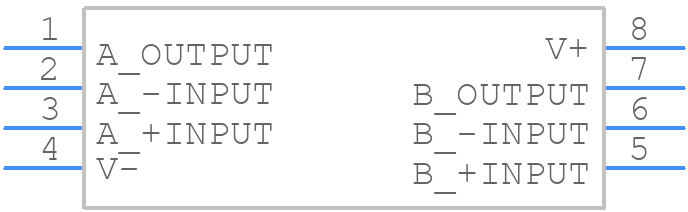

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NJM2115M - Nisshinbo PCB footprint - Small Outline Packages - Small Outline Packages - DMP7
click to zoom
3D Models
NJM2115M - Nisshinbo  - 3D model - Small Outline Packages - DMP7
click to zoom

NJM2115M Details

  • Manufacturer Part Number:

    NJM2115M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Nisshinbo Micro Devices

  • YTEOL:

    6.2

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.3 µA

  • Bias Current-Max (IIB) @25C:

    0.3 µA

  • Common-mode Reject Ratio-Min:

    60 dB

  • Common-mode Reject Ratio-Nom:

    74 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    6000 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e6

  • Length:

    5 mm

  • Low-Offset:

    NO

  • Neg Supply Voltage Limit-Max:

    -7 V

  • Neg Supply Voltage-Nom (Vsup):

    -2.5 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.3

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Slew Rate-Nom:

    4 V/us

  • Supply Current-Max:

    5 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN BISMUTH

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    12000

  • Voltage Gain-Min:

    1000

  • Width:

    5 mm

NJM2115M Frequently Asked Questions (FAQs)

  • A good PCB layout for NJM2115M involves separating the analog and digital grounds, using a solid ground plane, and placing the IC close to the power supply. Additionally, it's recommended to use a ferrite bead or a 10uF capacitor in series with the power supply to filter out high-frequency noise.
  • To ensure the stability of the NJM2115M output voltage, it's essential to use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a high ripple current rating. A 10uF to 22uF ceramic capacitor is recommended. Additionally, the output voltage can be stabilized by adding a 1kΩ to 10kΩ resistor in series with the output capacitor.
  • Although the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and prevent damage to the IC. Exceeding the maximum input voltage can cause the IC to overheat or fail.
  • NJM2115M is rated for operation up to 85°C, but its performance may degrade at higher temperatures. If you need to use the IC in a high-temperature environment, it's recommended to derate the output current and ensure good heat dissipation. Additionally, consider using a heat sink or a thermal pad to reduce the IC's junction temperature.
  • To troubleshoot issues with NJM2115M, start by checking the input voltage, output voltage, and output current. Verify that the input voltage is within the recommended range, and the output voltage is stable. Check for any signs of overheating, such as a hot IC or a burning smell. Use an oscilloscope to check for any noise or oscillations on the output voltage. If the issue persists, try replacing the IC or consulting the datasheet and application notes for guidance.
