A good PCB layout for NJM2122D involves separating the analog and digital grounds, using a solid ground plane, and placing the IC close to the power supply. Additionally, it's recommended to use a ferrite bead or a 10uF capacitor in series with the power supply to filter out high-frequency noise.
To ensure stability, make sure to follow the recommended compensation capacitor values and placement, and avoid using long wires or traces that can introduce parasitic inductance. Also, ensure that the op-amp is operated within its recommended supply voltage and temperature range.
The maximum power dissipation of NJM2122D is typically limited by the package thermal resistance and the maximum junction temperature. To calculate the power dissipation, use the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current.
Yes, NJM2122D can be used as a comparator, but it's essential to ensure that the input common-mode voltage is within the recommended range, and the output stage is properly biased. Additionally, consider the op-amp's slew rate and bandwidth limitations when using it as a comparator.
To protect NJM2122D from overvoltage and ESD damage, use voltage clamping devices such as TVS diodes or zener diodes on the input and output pins. Additionally, ensure that the PCB design includes proper ESD protection measures, such as ESD-resistant components and a robust grounding system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NJM2122D Overview

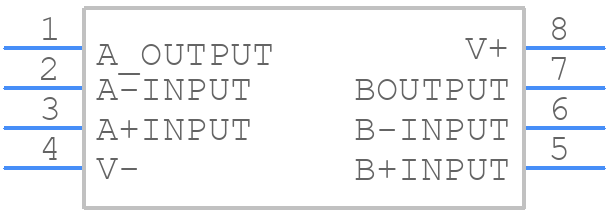

Use the download button to access the NJM2122D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NJM21,
or try a keyword search, such as Operational Amplifiers
