A good PCB layout for NJM2732D involves keeping the input and output traces short and away from each other, using a ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure proper power-on and power-off, make sure to follow the recommended power-up and power-down sequences in the datasheet. Also, use a soft-start circuit to limit the inrush current and prevent voltage drops.
The maximum allowed voltage on the EN (enable) pin is 6V. Exceeding this voltage may damage the device. It's recommended to use a voltage divider or a level shifter if the control signal is higher than 6V.
While NJM2732D is rated for operation up to 125°C, it's essential to consider the device's power dissipation and thermal management in high-temperature environments. Ensure proper heat sinking and follow the recommended thermal design guidelines.
To troubleshoot issues with NJM2732D, start by checking the PCB layout, component values, and soldering quality. Verify that the input voltage, output load, and decoupling capacitors meet the recommended specifications. Use an oscilloscope to analyze the output voltage and current waveforms.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NJM2732D Overview

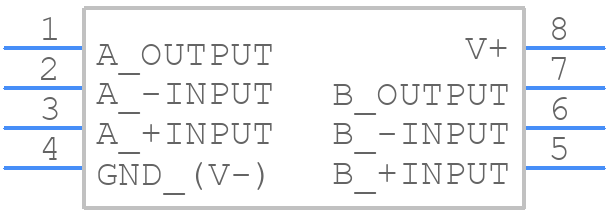

Use the download button to access the NJM2732D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NJM27,
or try a keyword search, such as Operational Amplifiers
