NJM2732M - Nisshinbo

Description: Standard (General Purpose) Amplifier 2 Circuit Rail-to-Rail 8-DMP 0.4V/µs 1 MHz 50 nA 580µA 6 V -40°C ~ 85°C

Download NJM2732M Model

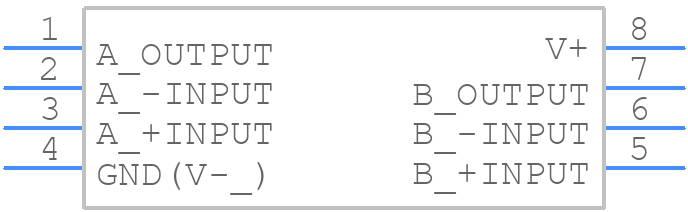

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NJM2732M - Nisshinbo PCB footprint - Small Outline Packages - Small Outline Packages - DMP8
click to zoom

NJM2732M Details

  • Manufacturer Part Number:

    NJM2732M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Nisshinbo Micro Devices

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.25 µA

  • Bias Current-Max (IIB) @25C:

    0.25 µA

  • Common-mode Reject Ratio-Nom:

    63 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e6

  • Length:

    5 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Slew Rate-Nom:

    0.35 V/us

  • Supply Current-Max:

    0.9 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN BISMUTH

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    1000

  • Voltage Gain-Min:

    1000

  • Wideband:

    NO

  • Width:

    5 mm

NJM2732M Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for NJM2732M is -40°C to 85°C, although it can withstand storage temperatures from -55°C to 150°C.
  • To ensure the stability of the output voltage, it is recommended to use a 10uF or larger capacitor at the output pin, and to keep the input voltage within the specified range.
  • The maximum input voltage that NJM2732M can handle is 18V, although the recommended input voltage range is 7V to 15V.
  • NJM2732M is not suitable for high-frequency applications above 100kHz due to its internal architecture and switching frequency. For high-frequency applications, consider using a different voltage regulator IC.
  • The power dissipation of NJM2732M can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
