NJM2746M - Nisshinbo

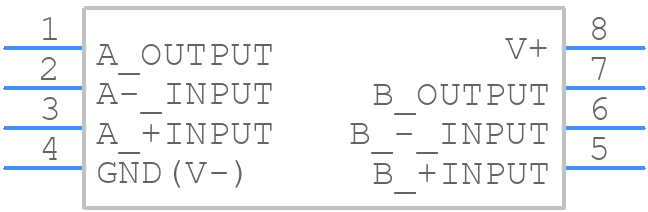

NJM2746M Details

• Manufacturer Part Number:

  NJM2746M

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  DMP-8

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Nisshinbo Micro Devices

• YTEOL:

  5.75

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  0.35 µA

• Bias Current-Max (IIB) @25C:

  0.35 µA

• Common-mode Reject Ratio-Nom:

  75 dB

• Frequency Compensation:

  YES

• Input Offset Voltage-Max:

  6000 µV

• JESD-30 Code:

  S-PDSO-G8

• JESD-609 Code:

  e6

• Length:

  5 mm

• Low-Bias:

  NO

• Low-Offset:

  NO

• Micropower:

  NO

• Number of Functions:

  2

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP8,.25

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE

• Power:

  NO

• Programmable Power:

  NO

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2 mm

• Slew Rate-Nom:

  3.5 V/us

• Supply Current-Max:

  5.5 mA

• Supply Voltage Limit-Max:

  15 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN BISMUTH

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Unity Gain BW-Nom:

  10000

• Voltage Gain-Min:

  1780

• Wideband:

  NO

• Width:

  5 mm
