NJM2901N - Nisshinbo

Description: Analog Comparators Single Supply Quad

Download NJM2901N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

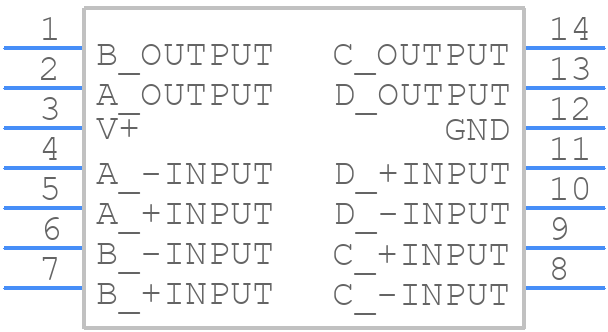

NJM2901N - Nisshinbo - PCB symbol
click to zoom
PCB Footprints

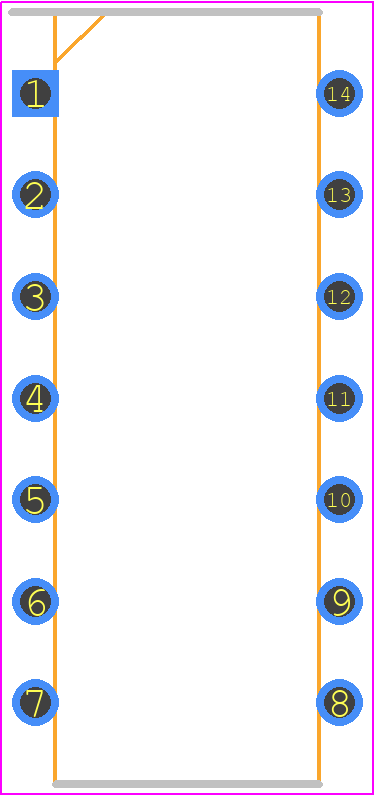

NJM2901N - Nisshinbo PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP14
click to zoom
3D Models
NJM2901N - Nisshinbo - 3D model - Dual-In-Line Packages - DIP14
click to zoom

NJM2901N Details

  • Manufacturer Part Number:

    NJM2901N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Nisshinbo Micro Devices

  • YTEOL:

    0

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.25 µA

  • Bias Current-Max (IIB) @25C:

    0.25 µA

  • Input Offset Voltage-Max:

    7000 µV

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e6

  • Length:

    19 mm

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-COLLECTOR

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    1300 ns

  • Seated Height-Max:

    4.7 mm

  • Supply Current-Max:

    2 mA

  • Supply Voltage Limit-Max:

    36 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN BISMUTH

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

NJM2901N Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for NJM2901N is -40°C to 125°C, although the device can withstand storage temperatures from -55°C to 150°C.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 5 ohms. Additionally, the input capacitor should be at least 1uF with an ESR of 1 ohm or less.
  • The maximum input voltage that NJM2901N can handle is 35V, although the recommended input voltage range is 7V to 28V for optimal performance.
  • NJM2901N has a built-in overcurrent protection (OCP) feature that limits the output current to 1.5A. However, it is still recommended to add external protection such as a fuse or a current-limiting resistor to prevent damage from excessive current.
  • Yes, NJM2901N is suitable for high-reliability applications due to its high MTBF (Mean Time Between Failures) rating of 10,000 hours and its compliance with various industry standards such as AEC-Q100 and IEC 60747-1.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NJM2901N Overview

Use the download button to access the NJM2901N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NJM29, or try a keyword search, such as Comparators
