NJM4556AD - Nisshinbo

Description: Operational Amplifiers - Op Amps Dual High Current

Download NJM4556AD Model

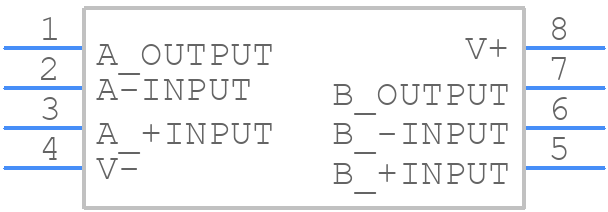

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NJM4556AD - Nisshinbo PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP8
click to zoom
3D Models
NJM4556AD - Nisshinbo  - 3D model - Dual-In-Line Packages - DIP8
click to zoom

NJM4556AD Details

  • Manufacturer Part Number:

    NJM4556AD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Nisshinbo Micro Devices

  • YTEOL:

    3

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.5 µA

  • Bias Current-Max (IIB) @25C:

    0.5 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    6000 µV

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e6

  • Length:

    8.8 mm

  • Low-Offset:

    NO

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.7 mm

  • Slew Rate-Nom:

    3 V/us

  • Supply Current-Max:

    12 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    TIN BISMUTH

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    8000

  • Voltage Gain-Min:

    19952.6

  • Width:

    7.62 mm

NJM4556AD Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for NJM4556AD is 3V to 16V, although it can operate up to 18V with reduced performance.
  • To ensure stability, it's recommended to use a bypass capacitor (e.g., 10nF to 100nF) between the VCC pin and GND, and to minimize the length of the input traces to reduce noise and oscillations.
  • The maximum power dissipation for NJM4556AD is 500mW, and it's essential to ensure that the device is properly heat-sinked to prevent overheating.
  • While NJM4556AD can be used as a comparator, it's not recommended due to its relatively slow response time (around 2.5μs) and limited common-mode input voltage range. A dedicated comparator IC would be a better choice.
  • To reduce noise, use a low-ESR capacitor (e.g., ceramic or film capacitor) for decoupling, keep the input traces short and away from noise sources, and consider adding a noise filter (e.g., RC filter) at the input.
