NJM4556AL - Nisshinbo

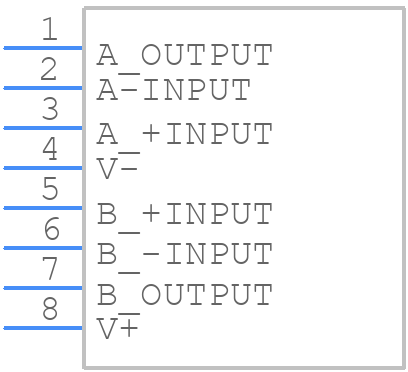

NJM4556AL Details

• Manufacturer Part Number:

  NJM4556AL

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Factory Lead Time:

  16 Weeks

• Manufacturer:

  Nisshinbo Micro Devices

• YTEOL:

  0

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  0.5 µA

• Bias Current-Max (IIB) @25C:

  0.5 µA

• Common-mode Reject Ratio-Min:

  70 dB

• Common-mode Reject Ratio-Nom:

  90 dB

• Frequency Compensation:

  YES

• Input Offset Voltage-Max:

  6000 µV

• JESD-30 Code:

  R-PSIP-T8

• JESD-609 Code:

  e6

• Length:

  19 mm

• Low-Offset:

  NO

• Neg Supply Voltage Limit-Max:

  -18 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Number of Functions:

  2

• Number of Terminals:

  8

• Operating Temperature-Max:

  75 °C

• Operating Temperature-Min:

  -20 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SIP

• Package Equivalence Code:

  SIP8,.06

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  8.3 mm

• Slew Rate-Nom:

  3 V/us

• Supply Current-Max:

  12 mA

• Supply Voltage Limit-Max:

  18 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Finish:

  TIN BISMUTH

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  SINGLE

• Unity Gain BW-Nom:

  8000

• Voltage Gain-Min:

  19952.6

• Width:

  3 mm
