A good PCB layout for NJM4558CG-TE2 involves keeping the input and output traces short and separate, using a ground plane, and placing decoupling capacitors close to the power pins. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure thermal stability, provide adequate heat sinking, such as a copper pad or a heat sink attached to the package. Keep the ambient temperature below 85°C, and ensure good airflow around the device. Monitor the junction temperature (Tj) and keep it below 150°C.
The recommended input impedance is around 1 kΩ to 10 kΩ, and the recommended output impedance is around 100 Ω to 1 kΩ. However, the optimal impedance values may vary depending on the specific application and circuit design.
Yes, NJM4558CG-TE2 can be used as an audio amplifier, but it's not optimized for audio applications. It's primarily designed for general-purpose amplification and switching applications. For audio applications, consider using a dedicated audio op-amp like the NJM4556 or NJM4560.
Use ESD protection devices, such as TVS diodes or ESD protection arrays, on the input and output pins. Add overvoltage protection circuits, such as voltage regulators or clamp circuits, to prevent voltage exceeding the maximum ratings. Follow proper handling and storage procedures to prevent ESD damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NJM4558CG-TE2 Overview

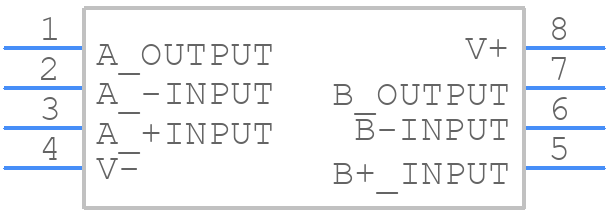

Use the download button to access the NJM4558CG-TE2 schematic symbol, PCB footprint, and 3D model.
