A good PCB layout for NJM4558CV-TE1 involves keeping the input and output traces short and separate, using a ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure stability, make sure to follow the recommended compensation capacitor values, keep the gain above 3, and avoid capacitive loads. Also, use a low-ESR capacitor for power supply decoupling and keep the circuit layout symmetrical.
The maximum power dissipation of NJM4558CV-TE1 is 1.4W. However, this value can be derated based on the ambient temperature and the thermal resistance of the PCB. It's essential to ensure that the device does not exceed the maximum junction temperature of 150°C.
Yes, NJM4558CV-TE1 can be used as a unity gain buffer. However, it's essential to ensure that the input impedance is high enough to avoid loading the previous stage. Also, consider adding a small capacitor in parallel with the feedback resistor to improve stability.
To protect NJM4558CV-TE1 from ESD damage, use ESD protection devices such as TVS diodes or ESD protection arrays at the input and output pins. Also, follow proper handling and storage procedures to prevent ESD damage during manufacturing and assembly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NJM4558CV-TE1 Overview

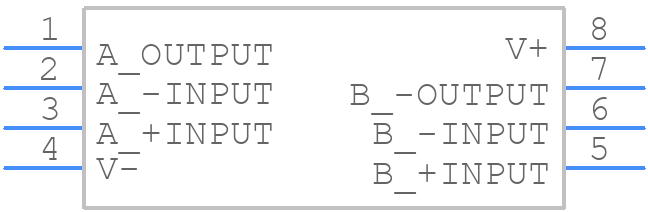

Use the download button to access the NJM4558CV-TE1 schematic symbol, PCB footprint, and 3D model.
