Part Image

NJM4558DD - Nisshinbo

Description: New Japan Radio NJM4558DD, Op Amp, 3MHz, 8-Pin PDIP

Download NJM4558DD Model

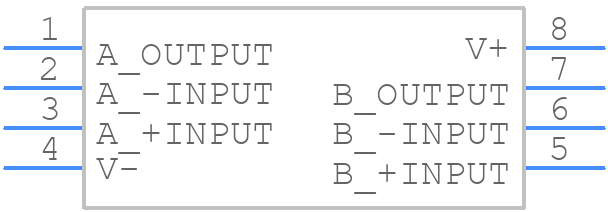

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NJM4558DD - Nisshinbo PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP8
click to zoom
3D Models
NJM4558DD - Nisshinbo  - 3D model - Dual-In-Line Packages - DIP8
click to zoom

NJM4558DD Details

  • Manufacturer Part Number:

    NJM4558DD

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    DIP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Nisshinbo Micro Devices

  • YTEOL:

    3

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.5 µA

  • Bias Current-Max (IIB) @25C:

    0.5 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    6000 µV

  • JESD-30 Code:

    R-PDIP-T8

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Power:

    NO

  • Programmable Power:

    NO

  • Slew Rate-Nom:

    1 V/us

  • Supply Current-Max:

    5.7 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    3000

  • Voltage Gain-Min:

    19952.62

  • Wideband:

    NO

NJM4558DD Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for NJM4558DD is 3V to 16V, although the datasheet specifies a minimum voltage of 2V and a maximum voltage of 18V.
  • To ensure stability in the NJM4558DD op-amp circuit, it's essential to follow proper PCB layout practices, use decoupling capacitors, and avoid parasitic capacitance and inductance. Additionally, consider adding a compensation capacitor between the output and the inverting input pins.
  • The maximum power dissipation for NJM4558DD is 1.4W, assuming a junction temperature of 25°C. However, this value can be derated based on the ambient temperature and package type.
  • While NJM4558DD can be used as a comparator, it's not the most suitable choice due to its relatively slow slew rate and limited bandwidth. A dedicated comparator IC would be a better option for most applications.
  • To handle ESD protection for NJM4558DD, follow proper handling and storage procedures, use ESD-protective packaging, and consider adding external ESD protection devices, such as TVS diodes or ESD arrays, to the circuit.
