NJM4565M - Nisshinbo

Description: DUAL OPERATIONAL AMPLIFIER, DMP8

Download NJM4565M Model

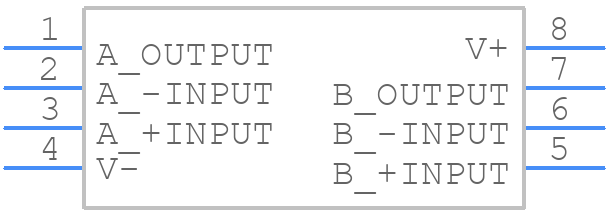

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NJM4565M - Nisshinbo PCB footprint - Small Outline Packages - Small Outline Packages - DMP8
click to zoom
3D Models
NJM4565M - Nisshinbo  - 3D model - Small Outline Packages - DMP8
click to zoom

NJM4565M Details

  • Manufacturer Part Number:

    NJM4565M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Nisshinbo Micro Devices

  • YTEOL:

    4.15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.2 µA

  • Bias Current-Max (IIB) @25C:

    0.2 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    3000 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e6

  • Length:

    5 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.3

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Slew Rate-Nom:

    4 V/us

  • Supply Current-Max:

    7 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    TIN BISMUTH

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    10000

  • Voltage Gain-Min:

    19952.6

  • Wideband:

    NO

  • Width:

    5 mm

NJM4565M Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • To ensure stability, a minimum ESR of 10 ohms is recommended for the output capacitor. Additionally, a 10nF to 100nF ceramic capacitor should be placed close to the IC to filter high-frequency noise.
  • The maximum allowed voltage on the enable pin (EN) is 6V. Exceeding this voltage may damage the IC.
  • The NJM4565M is rated for operation up to 125°C. However, the IC's performance and reliability may degrade at high temperatures. It is recommended to derate the IC's power dissipation accordingly.
  • An external current sense resistor (Rcs) should be used to monitor the output current. A voltage comparator or a dedicated overcurrent protection IC can be used to detect overcurrent conditions and shut down the IC if necessary.
