NJM4580CG-TE2 - Nisshinbo

Description: Operational Amplifiers - Op Amps Dual Op Amp 2 to 18V 5nV 15MHz 5V

Download NJM4580CG-TE2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

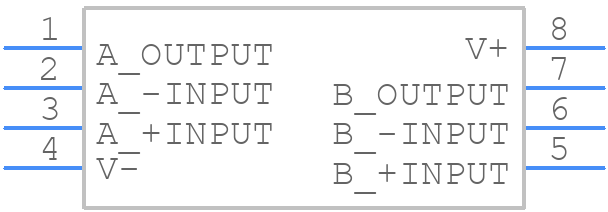

NJM4580CG-TE2 - Nisshinbo - PCB symbol
click to zoom
PCB Footprints
NJM4580CG-TE2 - Nisshinbo PCB footprint - Small Outline Packages - Small Outline Packages - NJM4580CG-TE2
click to zoom
3D Models
NJM4580CG-TE2 - Nisshinbo - 3D model - Small Outline Packages - NJM4580CG-TE2
click to zoom

NJM4580CG-TE2 Details

  • Manufacturer Part Number:

    NJM4580CG-TE2

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Nisshinbo Micro Devices

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

NJM4580CG-TE2 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for NJM4580CG-TE2 is 4.5V to 16V.
  • To ensure stability, it's recommended to use a bypass capacitor between the power supply pins (VCC and GND) and to keep the input impedance high enough to prevent oscillations.
  • The maximum power dissipation of NJM4580CG-TE2 is 500mW.
  • Yes, NJM4580CG-TE2 can operate in a temperature range of -40°C to 125°C, but the maximum junction temperature should not exceed 150°C.
  • To reduce noise, use a low-pass filter at the input, keep the input impedance high, and use a decoupling capacitor between the power supply pins.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NJM4580CG-TE2 Overview

Use the download button to access the NJM4580CG-TE2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NJM45, or try a keyword search, such as Operational Amplifiers
