NJM4580D - Nisshinbo

Description: DUAL OPERATIONAL AMPLIFIER

Download NJM4580D Model

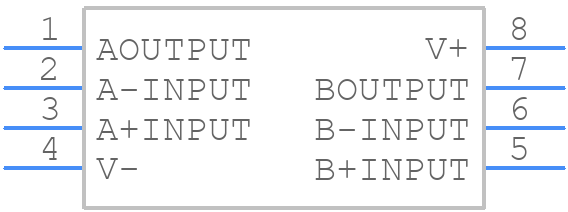

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NJM4580D - Nisshinbo PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP8
click to zoom
3D Models
NJM4580D - Nisshinbo  - 3D model - Dual-In-Line Packages - DIP8
click to zoom

NJM4580D Details

  • Manufacturer Part Number:

    NJM4580D

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Nisshinbo Micro Devices

  • YTEOL:

    3

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.5 µA

  • Bias Current-Max (IIB) @25C:

    0.5 µA

  • Common-mode Reject Ratio-Min:

    80 dB

  • Common-mode Reject Ratio-Nom:

    110 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    3000 µV

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e6

  • Length:

    8.8 mm

  • Low-Offset:

    NO

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.7 mm

  • Slew Rate-Nom:

    5 V/us

  • Supply Current-Max:

    9 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN BISMUTH

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    15000

  • Voltage Gain-Min:

    31622.8

  • Width:

    7.62 mm

NJM4580D Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for NJM4580D is 4.5V to 16V.
  • To ensure stability, it is recommended to use a bypass capacitor between the power supply pins (VCC and GND) and to keep the input impedance high.
  • The maximum power dissipation of NJM4580D is 500mW.
  • Yes, NJM4580D can operate in a temperature range of -40°C to 125°C, but the maximum junction temperature should not exceed 150°C.
  • To reduce noise, use a low-pass filter at the input, keep the input impedance high, and use a decoupling capacitor between the power supply pins.
