Part Image

NJM4580DD - Nisshinbo

Description: Audio Amplifiers Dual

Download NJM4580DD Model

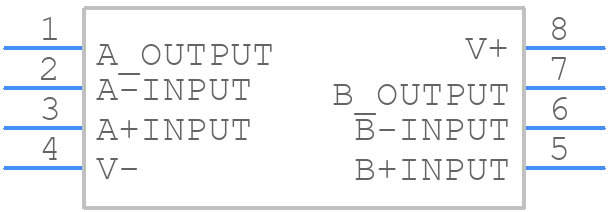

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NJM4580DD - Nisshinbo PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - NJM4580DD-1
click to zoom
3D Models
NJM4580DD - Nisshinbo  - 3D model - Dual-In-Line Packages - NJM4580DD-1
click to zoom

NJM4580DD Details

  • Manufacturer Part Number:

    NJM4580DD

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    DIP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Nisshinbo Micro Devices

  • YTEOL:

    3

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.5 µA

  • Bias Current-Max (IIB) @25C:

    0.5 µA

  • Common-mode Reject Ratio-Min:

    80 dB

  • Common-mode Reject Ratio-Nom:

    110 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    3000 µV

  • JESD-30 Code:

    R-PDIP-T8

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Power:

    NO

  • Programmable Power:

    NO

  • Slew Rate-Nom:

    5 V/us

  • Supply Current-Max:

    9 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    15000

  • Voltage Gain-Min:

    31622.77660168

  • Wideband:

    NO

NJM4580DD Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for NJM4580DD is 4.5V to 16V.
  • To ensure stability, it is recommended to use a bypass capacitor between the power supply pins (VCC and VEE) and to keep the input impedance high.
  • The maximum power dissipation of NJM4580DD is 500mW.
  • Yes, NJM4580DD can be used as a comparator, but it is not recommended as it is an op-amp designed for amplification, not comparison.
  • To reduce noise, use a low-pass filter at the input, keep the circuit layout clean, and use a ground plane to minimize electromagnetic interference.
